Diameter Range (mm): a: 1-10 b: 3-16
Temp Class(C): 130 155 180, 200, 220
Standard: IEC,NEMA,GB,JIS
Color: natural color, red, blue, green and so on
UL NO: E345303

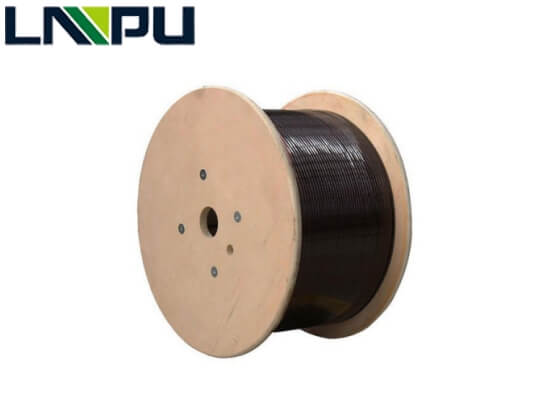

Package: 30kg/50kg Wooden Bobbin or according to customer requirements
Email:office@cnlpzz.com
Oil-immersed transformers, dry type transformers, heat transformers and other electrical devices in the winding.
|
Enameled Type |
Polyester |
Modified Polyester |
polyester-imide |
Polyamide-imide |
polyester-imide /Polyamide-imide |
|
Products type |
PEW/130 |
PEW/155 |
EIW/180 |
EI/AIW/200 |
EIW(EI/AIW)/220 |
|
Temp Class |
130 |
155 |
180 |
200 |
220 |
|
Insulation Grade |
Grade1/Grade2 |
Grade1/Grade2 |
Grade1/Grade2 |
Grade1/Grade2 |
Grade1/Grade2 |
|
Standard |
IEC,NEMA,JIS,GB or according to customers’ requirements |
||||

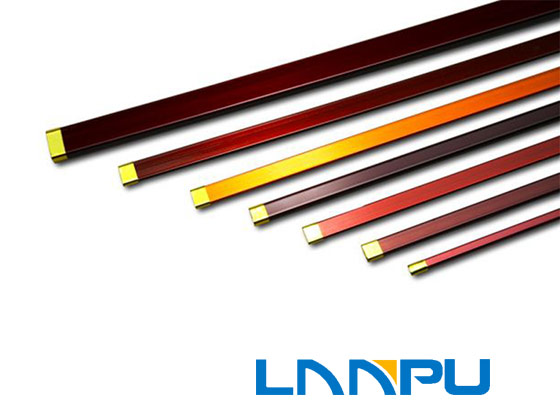

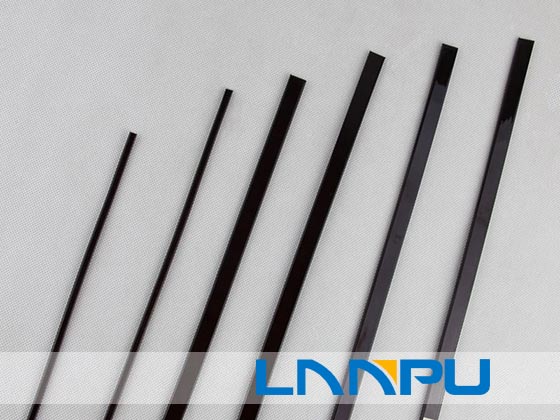

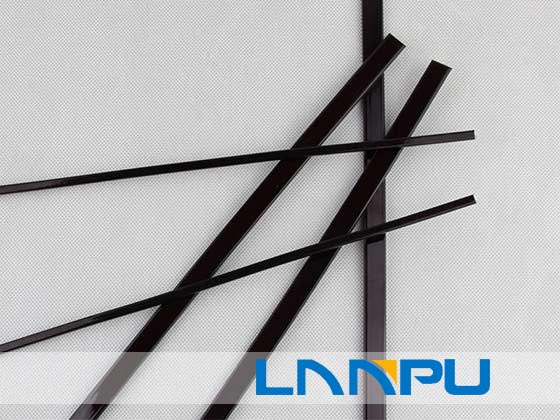

ENAMELED FLAT ALUMINUM WIRE
