Wire enamel insulating varnish

Question: During our production process, we found that one axis of enameled wire is wound around the axial inductance. This axis of enameled wire and other axis of enameled wire are wound on the same magnetic core. The inductance of the enameled wire with this axis is relatively high. We made 1mH inductance, and the enameled wire of the other axis was only 960uH, and the problematic wire of this axis was 1.025mH, and the inductance test frequency was 796kHz. (1) The number of stitches is the same as the number of turns, excluding the slip ring. (2) The 1-meter straight resistance is a bit smaller than that of other shafts. I personally think that the enameled wire contains magnetic substances, but if it contains magnetic substances, the resistivity should be greater, and the DC resistance should be greater. So please help to solve the problem, or have encountered this kind of problem before, please analyze it, thank you in advance!

The paint is a process of painting the paint of the enameled wire to form a uniform lacquer layer of a thickness on the metal conductor. This is related to several physical phenomena and painting methods of liquid.

High Temperature Aluminum Magnet Wire (Anodized aluminium wire) belongs to the special electromagnetic wire and the insulation layer is the aluminum oxide . Because of no thermal aging phenomenon, it can be used as insulation level of class 220.
The insulation layer of such product is thin, high temperature resistance and insulation performance stability,which is the best choice for low voltage winding wires with producing high temperature, poor environment, heat dissipation difficulty and so on.
It can widely be used in electromagnetic industries at home and abroad.

The current enamel wire industry is relatively low due to the admission threshold, and therefore the production enterprises have more and more, and the market competition is constantly intensified, but in the high-end product field, there are not many companies that can enter, in the present, and future, The enamel wire business wants to achieve better development, and build brands and scale becomes more and more important.

The motor generally includes a stator and a rotor, with a core and windings on the stator or rotor.
The insulated wire is winded by a certain shape to form a coil. The coil can be a turn or a plurality of turns. A plurality of coils form a group of units and is called a coil group. A combination of a plurality of coils or coil groups constituting one phase or the entire electromagnetic circuit becomes a winding .

Best Selling 155 Class Enamelled Copper/Aluminum Winding Wire includes copper wire and aluminum wire used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers. Thermal Class:Class 155, popular used for low voltage dry type transformers.

Direct-welding enameled wire is named after its insulating layer uses an insulating material that can be directly destroyed at 360~420¡ã, and it can be directly welded without removing the insulating layer in advance during welding. Direct welding enameled wire is currently widely used in various industries of electromagnetic coils (motors, electroacoustics, inductance, etc.). As for whether it can be used to wind the motor coil, it mainly depends on the motor power or the working environment of the coil, and there is no problem within a certain temperature range.

Use a hydrogen-oxygen flame welding machine to weld the coil lead wires of electronic devices such as motors, motors, and transformers.

working principle:
Water is composed of hydrogen and oxygen. In a specific electrolytic cell, water can be decomposed into hydrogen ions and hydroxide ions. The hydrogen ions move to the cathode to generate hydrogen gas, and the hydroxide ions move to the anode to generate oxygen. Hydrogen is a fuel. Oxygen can be used to support combustion. It can be ignited by a specific hydrogen-oxygen flame gun to form a hydrogen-oxygen flame, which can quickly weld the enameled wire.

Transformer insulation wire is usually circular. Silk covered wire, also known as cotton covered wire, it is a thread or yarn on copper coated insulation materials, such as to increase the mechanical strength and dielectric strength of the wire.

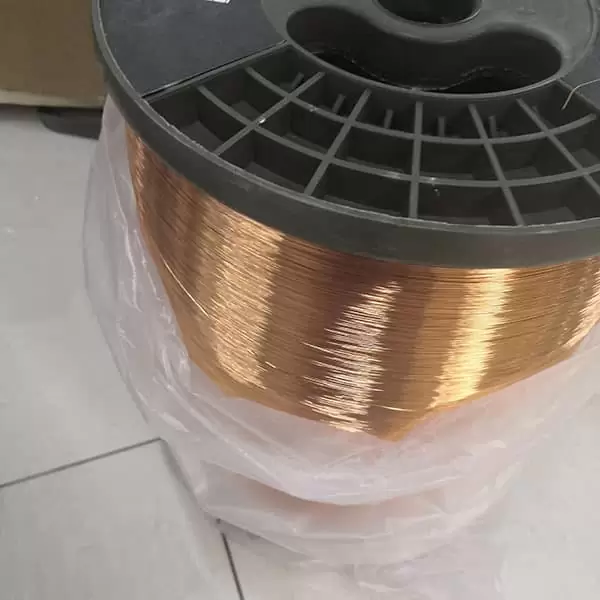

Copper Clad Aluminum Enameled Wire is one of magnet wire, used for electric equipment. ECCA is popular enameled wire, maybe instead of the copper enameled wire and aluminum magnet wire in some field.

A brief introduction to the advantages and disadvantages of copper wire and aluminum wire:Same area:

1, copper wireis large load than aluminum wire . 2, copper wire is more flexible than aluminum wire. 3 copper wire is lower resistivity than aluminum wire. 4,copper wire is more stable than aluminum wire. 5, however, copper wirer price is 3.5 times higher than aluminum wire.

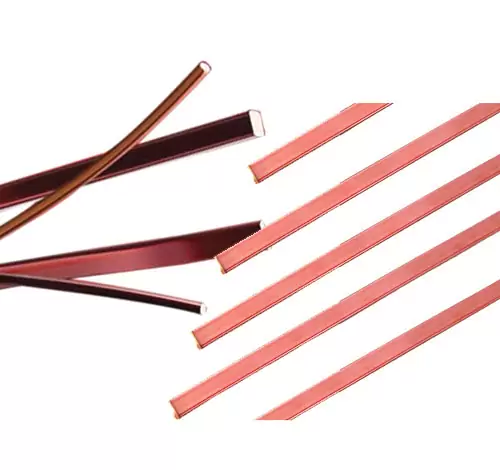

Special Insulated Rectangular Wires include fiberglass covered wire, paper covered wire, kapton insulated wire. Except Insulated Rectangular Wires, also provide the round special insulated wire.

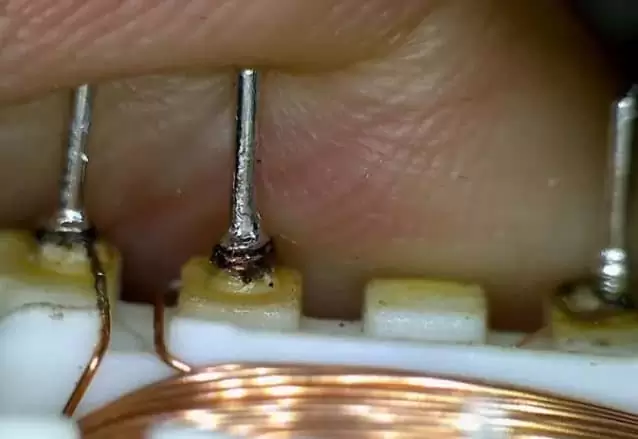

Poor soldering is mainly manifested in that the paint film after soldering will not melt off after the soldering, which causes the phenomenon of poor soldering.

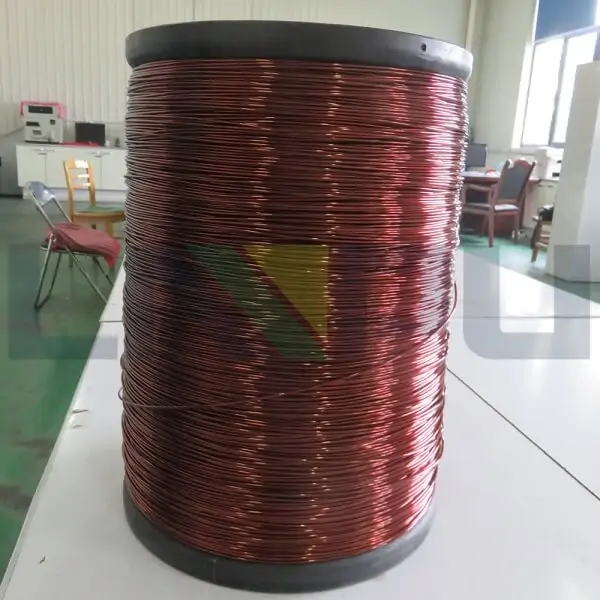

Enameled wire
The insulation of enameled wire is varnish film, which is formed by coating insulating varnish on the conductive wire core and drying it.

Product features and uses
The paint film of the enameled wire is uniform and smooth, which is conducive to the automatic winding of the coil; the paint film is also thin, which is conducive to improving the space factor, and is widely used in small and medium-sized or micro electrical products

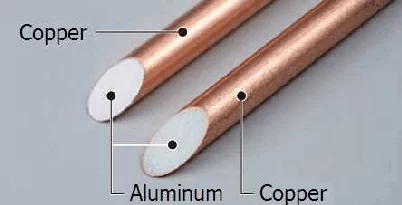

Copper-clad aluminum wire refers to a wire with aluminum core wire as the main body and a certain proportion of copper layer plated on the outside. It can be used as a conductor for coaxial cables and wire and cable conductors in electrical equipment. The aluminum wire has a small specific gravity, but its welding performance is not good. Therefore, the copper-clad aluminum wire is wrapped with a copper layer on the aluminum wire. This copper-clad aluminum wire can not only take advantage of the small aluminum specific gravity, but also improve the welding performance.

Enameled wire is a main type of winding wire. It consists of a conductor and an insulating layer. After the bare wire is softened by annealing, it is painted and baked many times. However, it is not easy to produce products that not only meet the requirements of the standard, but also meet the requirements of customers. It is affected by the quality of raw materials, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various enameled wires are different, but they all have Mechanical properties, chemical properties, electrical properties, and thermal properties are four major properties.

After the temperature resistance level is exceeded, the insulation layer will age, melt and crack. The result is that the insulation capacity is greatly reduced, and it is prone to increased loss, short-circuit failure, etc.

The structure of enameled wire is very simple, consisting of conductor and insulating layer. Because of its high dielectric strength, small footprint and good heat dissipation, it is widely used as a coil winding in motors and transformers.

Product details :
Place of origin : Henan ,China(Mainland);
Brand name : Signi;
Type : Insulated;
Conductor material : Aluminum;
Conductor type : Solid;
Insulation material : Enameled;
Diameter : 0.025-4.5mm;
Color : Natural;
Thickness : Grade 1/2/3;
Thermal Class : 130-220c;
Application : Motor,transformer,welding machine and generator;

Although the quality of enameled wire depends to a large extent on the quality of raw materials such as paint and wires and the objective conditions of machinery and equipment, if you do not take a series of problems such as baking, annealing, and speed, and understand their interrelationships. , Do not master the operation technology, do not seriously do the touring work, stop and tidy up the work, do not do well in the process and hygiene, even if the objective conditions are good, it will not be able to produce high-quality enameled wire. Therefore, the decisive factor for good enameled wire is people’s sense of responsibility for work.

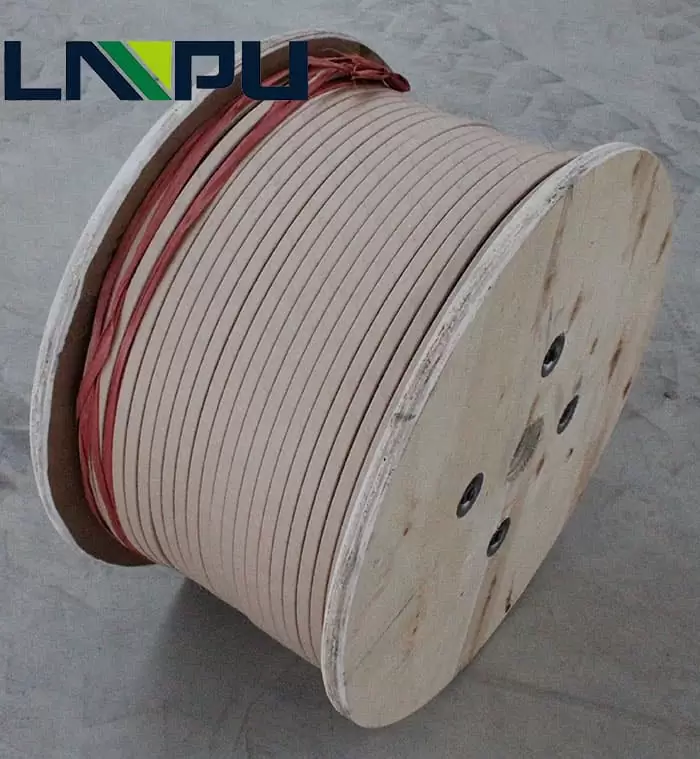

Good Quality Paper Covered Flat Aluminum Enameled Copper Wire is made of bare copper wire or bare aluminum wire, or paper-covered wire as the core, wrapped with paper for insulation. According to customer and national standards, the conductor is wrapped with telephone paper, electromagnetic paper, and high-density inter-turn insulation paper. As conductor insulation, it is an ideal material for civilian-made oil-immersed transformers; especially semi-hard insulated copper wires, which can significantly improve the winding resistance. The mechanical properties and short-circuit resistance can be widely used in the winding of large and medium-sized transformers.

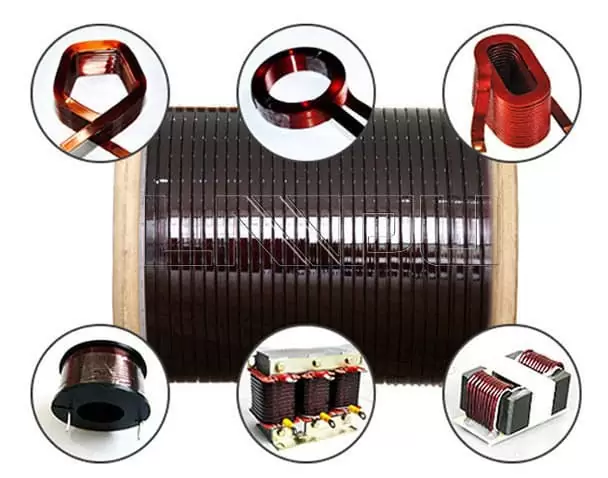

Features of Aluminum Enameled Electric Wire 1.5mm For Moxico
1) Excellent bending performance
2) High flexibility of enamel
3) Good wear resistance
4) High mechanical properties
5) Higher thermal performance
6) Good resistance to refrigerants and Freon
7) Suitable for windings subjected to continuous high temperature and mechanical stress
8) Good chemical resistance
9) Excellent mechanical and chemical properties

Precautions for storage should be well packaged, should not be placed in a high-humidity warehouse, should not be exposed to direct sunlight, and should not be placed near acids, alkalis and organic solvents.

enameled aluminum wire is composed of aluminum conductor and insulation materials, which is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Aluminum Conductor is main type of enameled wire.

Oxidative Aluminum Wire (Anodized aluminium wire)belongs to the special electromagnetic wire and the insulation layer is the aluminum oxide.
Because of no thermal aging phenomenon, it can be used as insulation level of class 220.
The insulation layer of such product is thin, high temperature resistance and insulation performance stability,which is the best choice for low voltage winding wires with producing high temperature, poor environment, heat dissipation difficulty and so on.
It can widely be used in electromagnetic industries at home and abroad.

Magnet wire is an insulated wire used to make coils or windings in electrical products. Also called winding wire. Magnet wires must meet the requirements of a variety of uses and manufacturing processes. The former includes its shape, size, ability to work at high temperatures for short and long periods of time, as well as withstanding strong vibration and centrifugal force at high speeds in some occasions, resistance to corona and breakdown under high voltage, and resistance to chemicals in special atmospheres Corrosion, etc.; the latter includes the requirements of stretching, bending and abrasion during winding and embedding, as well as swelling and erosion during dipping and drying.

The main advantage of the TIW wires is relatively high electric strength of the insulation, with breakdown voltage min. 6kV. Obtaining such a high resistance was possible by the use of a reinforced, three-layer conductor insulation. Third external insulation made of polyamide gives excellent flexibility and high mechanical resistance of the wire. Normally, TIW wires are produced in thermal class B. Fully automated manufacturing process provides a central position of conductor and the same thickness of insulation at any point of the wire.

The electrical insulation system for wires used in generators, electric motors, transformers, and other wire-wound electrical components is divided into different classes by temperature and temperature rise. The electrical insulation system is sometimes referred to as insulation class or thermal classification. The different classes are defined by NEMA, Underwriters Laboratories (UL), and IEC standards.

Application of China Factory Wholesale Copper Pianted Enameled Aluminum Wire
1. High frequency signal transmission
2. The preferred inner conductor material for cable television coaxial cable
3.50 RF cable, flexible RF coaxial cable inner conductor material
4. Leakage cable inner conductive material
5. Computer power supply, other data cable inner conductor material
6. Micro coaxial cable inner conductor material
7. Power transmission
8. Stranded wire
9. Power cable conductor material
10. Control cable inner conductor
11. Special cable inner conductor for automobiles and locomotives
12. Building non-wire conductor materials
13. Conductor materials such as bus bars
14. Fuse
15. Radio frequency shielding network.

List 5 type of enameled wire characteristics
Acetal enameled wire
Polyurethane enameled wire
Polyester and modified polyester enameled wire
Polyesterimide/polyamide imide composite enameled wire
Polyesterimide/polyamide composite enameled wire
