What happens if the enameled wire insulation paint has passed the temperature resistance level?

These Paper wrapped insulated aluminium wires enamelled and Strips are made from very high quality raw material which ensures hassle free work performance at its user end. These Paper Covered Aluminum Wires and Strips are technologically advanced and confirm to industrial quality norms of international standard. These Paper Covered Aluminum Wires and Strips are widely finds its applications in various industrial sectors.

Enameled wire is coated with insulating paint on the outside of the bare Aluminium wire, constitute the inside due to the effect of insulating varnish, between the two adjacent wire can bear 200 v ac voltage Q general insulation flow line surface light, soft, can work under the condition of 130 ¡æ continuous.In addition, enameled wire bending also requires 10 times, paint should not fall off, in order to meet the winding when won’t appear the quality problem.

ENAMELED ROUND ALUMINUM WINDING WIRES are widely used for Oil-immersed transformer windings, Dry-type transformer, High temperature transformer, Motor, transformer, generator, welding machine; Sealed motor, Power tools motor, Auto alternators motor, Magnet coil, High power motor, household electro motors and micro-motors;

Inductive sensors have outstanding advantages such as simple structure, fast dynamic response, and easy non-contact measurement. They are especially suitable for acids, alkalis, chlorides, organic solvents, liquid CO2, ammonia, PVC powder, ash, oil and water. Liquid level measurement such as interface is currently widely used in metallurgy, petroleum, chemical, coal, cement, food and other industries.

What is called Magnet Wire? The magnetic wire is a copper wire with an enamel (a kind of paint ) coating on it, and used for transformer coils and motor coils. Copper wire is a conductor, like bare copper.

AWG magnet wire is also called enamelled manganin wire which is composed of copper or aluminum conductor with insulation materials, such as PE, EI, UE, etc. The enameled wire have different performance according to chemical performance, heat resistance and others.

The Flat magnet wire size:
155 modified polyester enameled rectangle wire: a: 1.00-5.00;b: 2.00-16.00
180 polyester imied enameled rectangle wire: a: 1.00-5.00;b: 2.00-16.00
220 polyester imied enameled rectangle wire: a: 1.00-5.00;b: 2.00-16.00
200 polyester imeid/polyamide-imide enameled rectangle wire: a: 1.00-5.00;b: 2.00-16.00

The round enameled wire size
155 modified polyester enameled aluminum round wire: 0.25mm – 2mm
200 polyester imeid/polyamide-imide enameled round copper wire:0.016-7mm

According to SMM survey data, the operating rate of enameled wire in September was 71.32%, down 8.28% year-on-year, down 1.82% month-on-month, and 1.65% lower than the expected 72.97%. Among them, the operating rate of large enterprises was 71.56%, down 0.69% from the previous month; medium-sized enterprises fell by 4.06% to 71.50%, and small enterprises fell by 0.55% to 60.83%.

Paper Wrapped Aluminum wire Production Process

One step :
Take the pure aluminum material drawing into the aluminium rod wire;

Two step :
Through the extrusion production line, take the aluminum rod wire into extruding and coarse drawing operation, then becoming the requirement specification of Bare aluminium wire;

Three step :
Take up the Bare aluminum wire conductor, and inspection the bare wire coil products;

Four step :
Annealing the bare aluminum wire, and placed neatly, ready to production;

Five step :
Doing the digital dividing and cutting paper process and finished;
Pay-off the wire coil products, ready to paper covering production;

Six step :
Taking into straightening and tension lenvelling operation, ready to paper winding;

Seven step :
Taking into the paper winding operation, and then for inspecion;

Eight step :
Pulling the finished paper-covered wire, and then for take-up the wire coil , ready to packing.

The samples for tensile and thermal shock testing were 3 pieces of 254mm enameled wire.

First pull the enameled wire to the required elongation at a rate of 3.7-4.6 m/sec, then wrap the jerked sample around the mandrel, and then put the wrapped sample into the oven at the specified temperature for 30 minutes. It needs to be suspended in the oven. After leaving the oven, inspect the baked samples for cracking or peeling of the paint film. In this test, the diameter of the mandrel is usually 3 times the diameter of the enameled wire.

The specified temperature of the oven is set according to the temperature specified for the enameled wire of this ANSI Type in the NEMA MW1000 standard, which is usually the temperature grade of the enameled wire +20¡ãC.

List 5 type of enameled wire characteristics
Acetal enameled wire
Polyurethane enameled wire
Polyester and modified polyester enameled wire
Polyesterimide/polyamide imide composite enameled wire
Polyesterimide/polyamide composite enameled wire

Paper covered wire by Electrical Aluminium Pole extrusion die by a certain size or drawn wire after annealing, and then in the aluminum conductor wrapped more than two or two insulating paper (including paper, telephone, cable paper, high voltage cable paper, turn insulation paper) of the winding wire, suitable for oil-immersed transformers and other electrical winding with a similar wire. Produced by the extrusion process electrical bare aluminum wire is wrapped production of the cable wire is the best material.

Paper insulation enameled transposition conductor characteristics:
1. There is no circulating current, the eddy current loss in the coil is small, and the current density can be improved;
2. Simplify the winding process;
3. The full rate is higher than that of the paper-covered wire slot.

Paper-insulated enameled transposed wires are mainly used in the coils of large transformers.

¡ñ Conductor resistance. Measure with a conductor resistance tester, and then change to the value at 20¡ãC for comparison.
¡ñInsulation destruction voltage. Twist two enameled wires, apply voltage between the conductors, and judge by the damage voltage of the paint film. This performance is analyzed and judged through two tests of normal state and cold state breakdown voltage.
¡ñPaint film continuity (pinhole). Check the small holes of the paint film with a certain length of the test material. The project is tested by a high-pressure paint film continuity tester.

Paper-covered Aluminium magnet wire deliver excellent performance when used with oil such as transformer oil. A paper with a small hygroscopicity, mechanical strength, good permeability for oil, and high dielectric strength should be selected.

Application of Telephone cable paper covered insulated Aluminum magnet wire strip:
Paper covered Aluminum magnet wire is used in oil-immersed transformer and other similar electrical coil windings.

Round Enameled Wire type: Aluminum Wire and Copper Wire
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Dimension: Aluminum : 0.2-9.2mm; Copper: 0.016-7mm

Nomex Paper Covered Copper Aluminium Enameled Wire is a kind of electromagnetic wire, which is specially used to manufacture winding coils of various oil-immersed transformers. It has good insulation on the outside and good conductivity on the inside. It is the heart of the transformer.

Insulating paint is composed of three parts of paint base (natural or synthetic resin, asphalt, drying oil, fiber paper and its composites, etc.), solvent or diluent, and auxiliary materials (drier, pigment, emulsifier, antifungal agent, etc.) . According to the purpose, it can be divided into three types: dipping paint, covering paint and adhesive paint.

Kapton insulated aluminium wires are suitable for both HV and UHV applications at temperatures ranging from -269 to 200¡ãC with maximum bakeout temperature of 260¡ãC.
Kapton insulated aluminum wire is designed for use in high & ultra-high vacuum applications. Kapton has high mechanical strength, excellent electrical insulation properties, and low outgassing rates making it ideal for use as an in-vacuum insulator. These wires can be utilized in temperature ranges from 4K to 260¡ãC.

Enameled Aluminum Wire – EAW
Enameled Copper Wire – ECW
Enameled Aluminum Wire VS Enameled Copper Wire

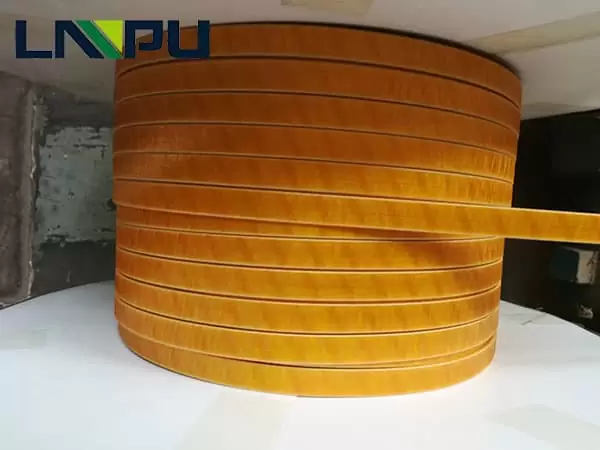

Class F Glass Fibre Insulated Aluminium strips is a high-quality aluminum wire that is evenly wrapped with alkali-free glass fiber. It is impregnated and baked with the required temperature resistance index and compatible bonding paint to make the glass fiber between the glass fiber It is bonded to the conductor as a whole, and the insulating layer has a certain degree of wear resistance, adhesion, flexibility and voltage resistance. This type of winding wire has good thermal shock and overload resistance. At present, the temperature resistance index of this kind of products has three grades: 130, 155, and 180. F grade refers to 155 grade.

1. Different materials: structure and composition are different
2. Different performance: Since the three-layer insulated wire cannot be directly welded, it needs to be stripped first, and the cost is higher, and it will be replaced by FIW; the insulation level is different, and the three-layer insulated wire can be produced with a temperature resistance of 200 degrees
3. Can be different in color, etc.

For Aromatic polyimide tape-covered aluminum magnet wire, after the aluminum magnet wire is taped with a tape that is 1.5 mm thick with 1.0 mm of this thickness being polyimide film and the remaining 0.5 mm being fluoroplastic, it is heated and heat-sealed.

The lacquered wire is composed of two of the conductor and the insulating layer. After the bare wire is deck, after multiple painting, baking.The enameled wire can be used in transformers, motors, motors, electrical, ballasts, inductance coils, disadvantages, audio coils, microwave coils, electric fans, instrumentation, and the like.

Poor soldering is mainly manifested in that the paint film after soldering will not melt off after the soldering, which causes the phenomenon of poor soldering.

Enameled round aluminum wire is made of oxygen free rod or electrical aluminum rod by a certain size of the die drawing or extrusion of the wire, the insulation paint through many times of the winding wire. Mainly used in winding of transformers, motors, generators, and various electrical devices.

Glass-fiber covered aluminum magnet wire used to have weak coating strength (abrasion resistance, shock resistance, and flexibility). However, that disadvantage has been significantly improved recently by refining material selection and manufacturing methods. The demand for glass-fiber covered aluminum magnet wire is increasing as the wires have excellent uniformity and electrical properties under high temperatures and humidity.

Advantages of enameled CCA wire:
As envelope alternatives of pure enameled copper wire, it has good performance of high frequency transmission, originally it was applied in various types of high-frequency electromagnetic induction coil; now in order to save more production cost, ECCA wire has been widely used in various types of electronic coils, transformers, inductors, rectifiers, and all kinds of large and small motors, and has excellent soldering performance. Its density is low, the weight of the unit product can at least save 40% of the copper wire, it can save a lot of cost of production material.

Nomex covering corresponds to class H insulation is mainly used in the construction of condensers and capacitors. Main application of it is in shielding of cables in high temp. environments (200¡ãC) such as dry type transformers, military and aerospace cables. Nomex covered conductors are more effective in condition where temperature resistance and dielectric strength requirements are high.
Application of Nomex Paper Covered Aluminum wire :
Mobile Transformer,Traction Transfomers,Pole-mounted distribution transformers,Power substantions,rectifiers,oil-immersed transfomer coil winding.

Three-layer insulated wire structure
High-frequency transformer triple-insulated wire is a high-performance insulated wire, so as the name suggests, this wire has three insulation layers with a core wire in the middle.
The first layer The first layer is golden yellow polyamine film, its thickness is a few microns, but it can withstand 3KV pulse high voltage
The second layer is a spray paint coating with high insulation,
The third layer is a transparent glass fiber layer. The total thickness of the insulating layer is only 20-100um. Its advantage is high insulation strength, and any two layers can withstand a safe voltage of 3000V AC, and the current density is large.

The electrical insulation system for wires used in generators, electric motors, transformers, and other wire-wound electrical components is divided into different classes by temperature and temperature rise. The electrical insulation system is sometimes referred to as insulation class or thermal classification. The different classes are defined by NEMA, Underwriters Laboratories (UL), and IEC standards.
