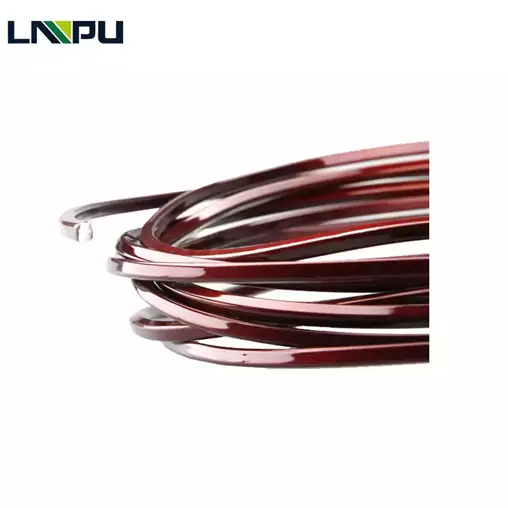

Super enamel aluminium wire swg square magnet wire for wind generator transformer

Flat wire thickness (a): 0.8mm ~8.0mm
Flat wire width (b): 2.0 ~ 25mm
Width (b) /thickness (a) ratio: 1.4 ＜ b/a＜8.0
Enameled flat aluminum wire available size ranges from 1.6-200 mm².

Thermal Class: 130-220C
Delivery time: 7-30 Days
Brand Name: LP Magnet Wire
Model Number: Aluminum Flat Wire
Bobbin: 30kg/50kgWooden Spool
Certification: SGS,UL,ISO9001,ISO4001

Brand Name: LP
Conductor Type: Solid
Diameter: a:1-10,b:3-16
Standard: IEC,NEMA,GB,JIS
Bobbin: 30/50kg wooden spool
Temperature class: 180,200,220
Conductor Material: Aluminum

Magnet_wire, enameled wire, enameled wire or winding wire or insulated wire, is a bare copper wire or aluminum wire coated with a very thin layer of insulation or covered with paper or fiberglass or insulation films. What is magnet wire used for? Magnet wire is widely used in transformer, motor, welding machine,refrigeration compressor, solar power, electrical equipment, household, appliances, medical equipment and transportation, etc, which require tight coils of wire.

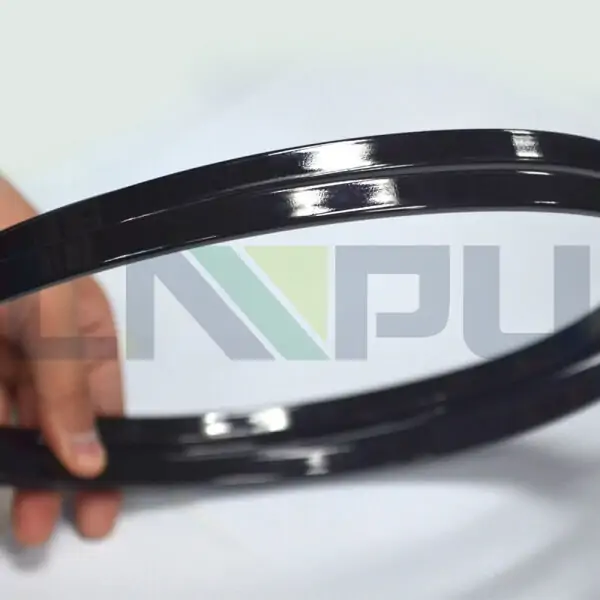

Single-layer Enameled Aluminum Flat Wire Insulated Aluminium Winding Wires are suitable for all “H”, “F” and “B” category applications, such as dry-type transformers, stator winding fractional HP motors, DC magnetic field and armature windings. Wires coated with polyester have good chemical resistance and are compatible with all common impregnating varnishes, including high-temperature modified phenolic polyester and other varnishes that do not contain reactive solvents.

Standard: IEC, NEMA,GB,JIS
Size: 0.8mm-7.0mm
Brand Name: LP
Thermal Class: 130-220C
Delivery time: 7days-30days

Brand Name: LP
Size: 0.8mm-7.0mm
Delivery time: 7-30days
Thermal Class: 130-220C
Certification: UL,ISO,ROHS
Model Number: square magnet wire

Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB.
Spool materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg – 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers

Brand Name: LP
Thermal Class: 130-220C
Delivery time: 7-30days
Conductor Type: Solid
Standard: IEC, NEMA,GB,JIS
Model Number: 23 awg magnet wire

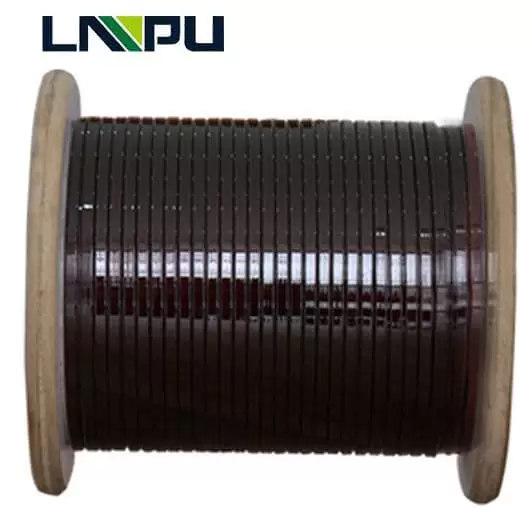

Rectangular Aluminum Magnet Wire
Rectangular: A> 0.8–8mm, B> 2-22.5mm
Wire Enamel: UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) ;
thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC)

Conductor Type: Solid
Thermal Class: 105℃
Brand Name: LP Magnet Wire
Certifaction: UL, SGS, RoHS, ISO9001
Diameter: Round:2.0-7.0;flat:a:1-10,b:3-35
Model Number: Flat paper covered winding wire
Main Application: Oil-immersed transformer windings

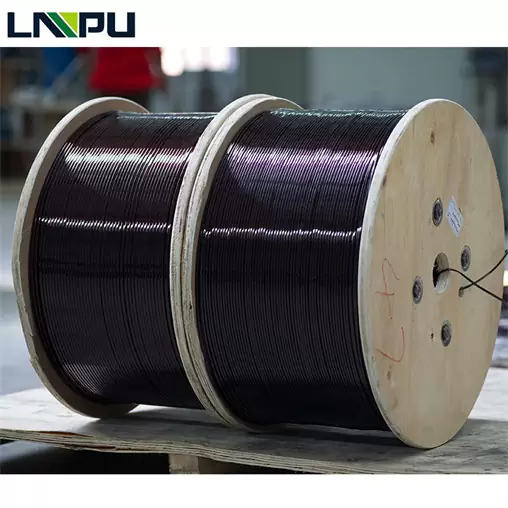

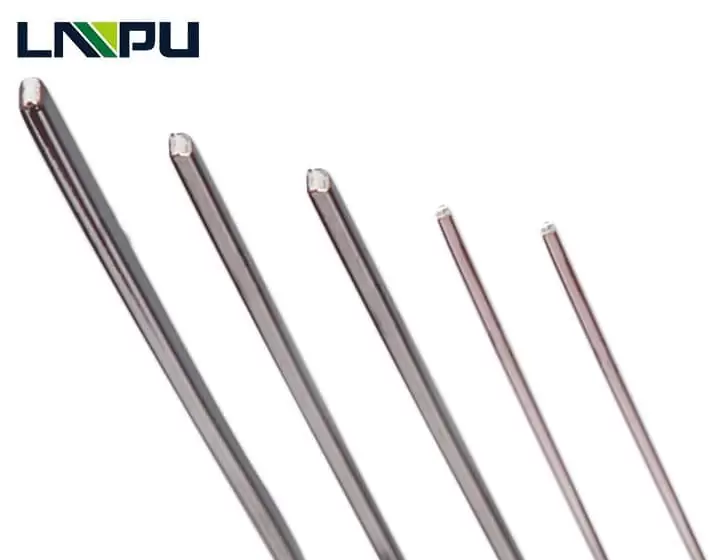

AWG / SWG Rectangular / Flat Aluminum Enameled Winding Wire Widely used in microwave oven transformer, three-phase power transformer, rectifier, demagnetizing coil of large color screen TV, kitchen motors, magnetic mineral separation equipment, parts of spare for automotive, wires and cables, etc.

Below are the main specification information:
Thickness(a): 0.8mm-10mm
Width(b): 2.0mm-25mm
Thermal Class(℃）: 180 200 220 240
Insulation thickness: G1 G2 G3 G4
Insulation Brand: Elantas
Standard: IEC NEMA JIS GB
Certificate: UL SGS
Package: 30-150kg ply-wooden spool→Pallet/Wooden Case

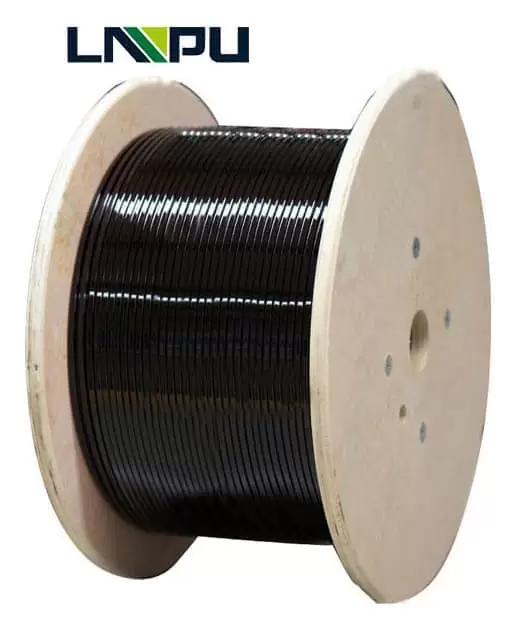

180H Rectangular Flat Aluminum Winding Wire For Electric Tools is a wire drawn from a round aluminum rod through a mold of specifications or extruded, and the drawn bare wire is annealed and softened, and then painted and baked for many times. Mainly used in the windings of electrical equipment such as transformers and reactors.

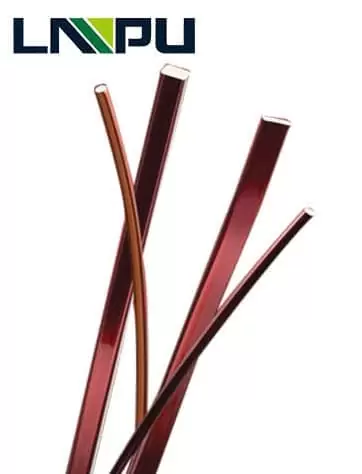

High Voltage Winding Wire Transformer Enameled Flat Aluminum Wire 2-22.5mm is a aluminum wire mainly used for windings with contiguous turns. Enamel is in fact a very resistant insulator mechanically, thermally and electrically. In addition to ordinary enamel there is solderable polyurethane enamel which is suitable for very large diameter wires (from 0.16 mm) very difficult to mechanically pickle. Pickling occurs around 400-500 ¡ã C.

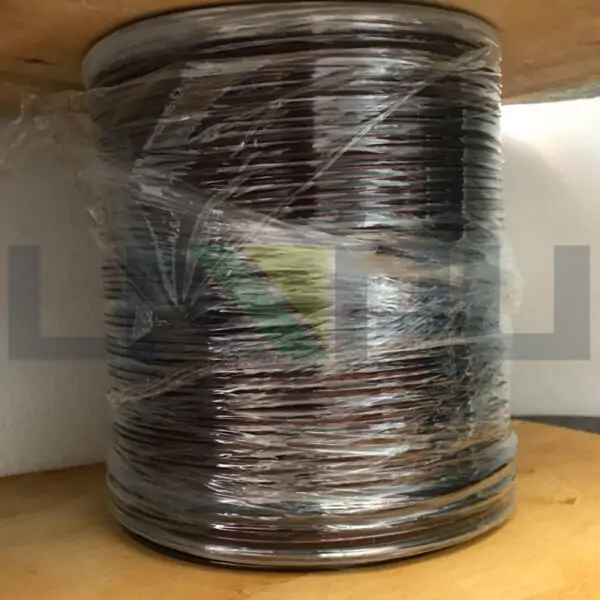

Product Name:Solderable Self-Bonding Winding Wire
Type: flat or round wire
Round Dimension:0.16-9.2mm
Conductor Material:Aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

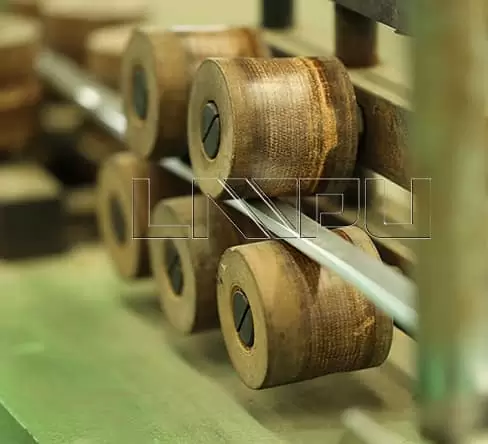

Class 200 enameled aluminum flat wire is a kind of winding wire that is coated with polyester-imide composite polyamide-imide insulating varnish on the surface of electrical aluminum wire as the conductor, and baked at high temperature. It has light weight. Easy to wind and relatively low cost, it is widely used in the windings of motors, UPS power supplies, intermittent power supplies and other products.
