Polyester film covered wire for transformer

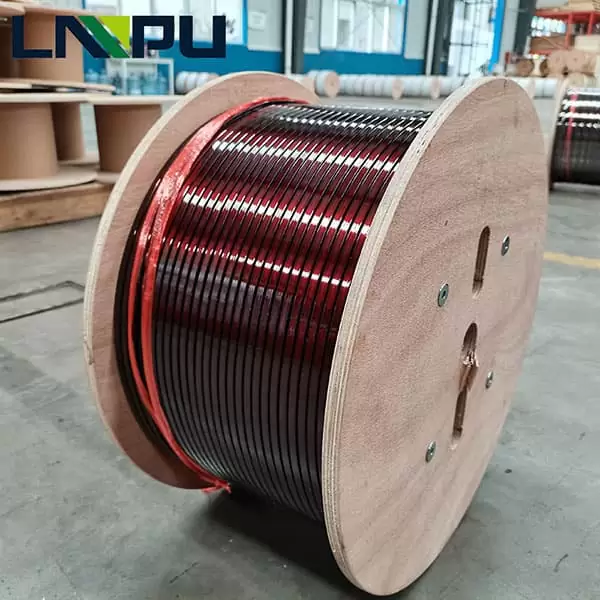

The High Breakdown voltage Shaped Aluminum Wire Enameled includes a conductor and a radiation protection layer, the conductor is coated with an insulating layer, the insulating layer is wrapped with a polymethylpentene film, and the polymethylpentene film is wrapped with a corrosion-resistant layer. The anti-corrosion layer is wrapped with an anti-radiation layer, the anti-radiation layer is wrapped with an epoxy-modified silicone resin layer, and the epoxy-modified silicone resin layer is wrapped with an outer layer.

enameled aluminum wire is composed of aluminum conductor and insulation materials, which is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Aluminum Conductor is main type of enameled wire.

LP Industry does elongation test

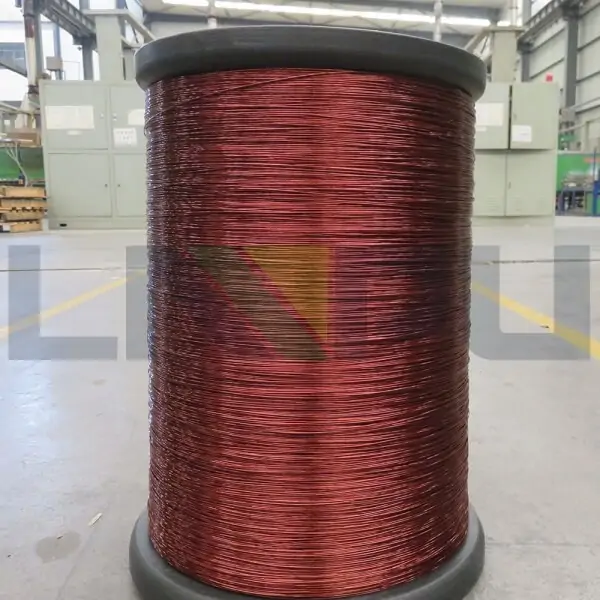

2UEW PT-10 Class 180 Enameled round aluminum wire
the elongation is qualified about 24% -28% by IEC 60815.
Dimension: AWG12
Elongation is the ratio of the increase in length to the original length, expressed as a percentage. On an extensometer or tensile testing machine, stretch a straightened sample with a free test length of 200mm-250mm to the breaking point of the conductor at a rate of (5+1) mm/s, and calculate the linear increase in length at break and The ratio of the free test length is expressed as a percentage. Three samples are measured, the three test values are recorded, and the average value is taken as the elongation at break.

Specialize used in Refrigeration Compressors.
Fluoride resistant enamelled aluminum round wire
Specification Range : 0.06 to 6.00 mm
Material requirements : resistance to R22 and R134a has a special paint, self-lubricating paint, high purity aluminum;
Production standard : GB/T 6109.20 2008;IEC 60317 – and 97;

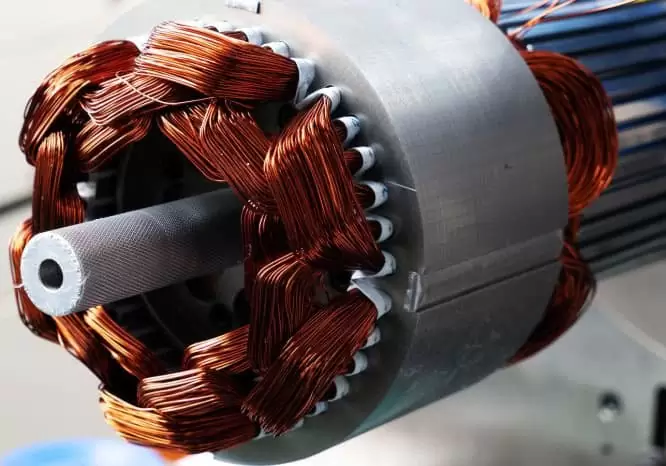

Nowadays, there are a lot of arguments that aluminum wire is used instead of copper wire in the market, and the aluminum wire motor that matches it also emerges as the times require. What are the differences between copper wire motor and aluminum wire motor? How to identify it? In fact, it is easy to distinguish from the principle of its metal.

Specifications of Ultral Fine rectangular Enameled Aluminum Wire:
1 Type:
Enameled aluminum round and flat wire
2 Base material:aluminum
3 Space factor:
1)Appro*78% Array winding
2)Appro*91% Array winding
3)Appro*96% Edgewise winding
4 Structure:Insulating film bonding film , Aluminium wire
5 Size:0.050-0.800mm

Product Name:enameled aluminum wire
Type: round and rectangular aluminum wire
Round: 0.2–10.0mm,
Rectangular: A> 0.8–8mm, B> 2-22.5mm
Square: 0.4*0.4mm–8*8mm
Conductor Material:aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Product Name:enameled aluminum wire
Type: round and rectangular aluminum wire
Diension:SWG 31 32 33 34 35 36 38
Conductor Material:aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Enameled wire is widely used in winding wires of motors, transformers, inductors, generators, electromagnets, and coils.
In the past, the diameter range of enameled wire usually required was 0.2-2.0mm [AWG12-32], but nowadays, thinner (diameter less than 0.18mm, AWG33) and thicker (diameter greater than 3.0mm, AWG9) are required on the market Enameled wire.

With the transformer and motors developping, the Enameled Aluminum Wire On The Market is used more and more, expecially the unstable price of copper.
Enameled Aluminum Wire Type: rectangular and round type
Certificate: UL

Factory Supply Insulated Aluminum Round Winding Wire Per Kilo normally as a sample to buyer is used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers.Thermal class 155 and 180 mostly used for low voltage transformer, the class 200 and 220 used for high voltage transformer. Insulated Aluminum Round Winding Wire is made of aluminum conductor and UEW, QZ, QZY, EIW insulation materials. LP Industry manufactures the enameled wire in accordance with the IEC, NEMA standards with UL certificate.

EAL-Enameled Aluminum Wire is a main variety of the winding wire, composed by conductor and insulating layer. After the bare wires are annealed soften, then through many times paint, and bake to the finished product. Enameled wire is a main material for the electrical machine, electrical appliance, household applicance, ect. The different enameled wires have different qualities and characteristics, but all possess mechanical property, chemical property ,electrical property, febricity.

Tolerance:±1%
Width: 20-1900mm
Thickness (mm): 0.2-3.0
Brand Name: LP Industry
Delivery Time: 46-60 days
Model Number: Aluminum Foils

Size: 0.16-9.2mm
Delivery time: 7-30 Days
Conductor Type: Solid
Thermal Class: 130C~220C
Brand Name: LP Magnet Wire

Polyester-Imide Series Enamelled Wirer For Oil-Transformer has the characteristics of high temperature resistance, good mechanical properties, excellent insulation properties and environmental sensitivity to meet the requirements of high-tech development in aerospace, microelectronics, electrical, chemical, energy technology and other high-tech developments.

Performance comparison of High resistance metal enameled aluminum wire:
(1) Heat resistance
(2) Resistance to solvents, chemicals and varnishes
(3) Resistance to hydrolytic degradation
(4) Stability when combined with insulating materials
(5) Resistance to water and moisture
(6) Ease of use

Thermal Class: 130-220C
Delivery time: 7-30 Days
Brand Name: LP Magnet Wire

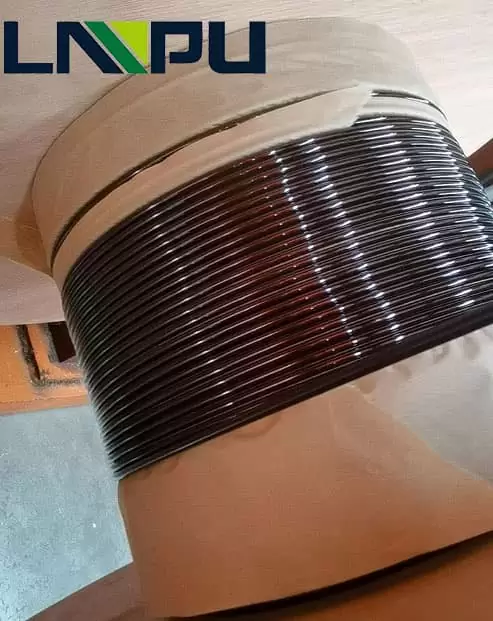

Model Number: Aluminum Flat Wire
Bobbin: 30kg/50kgWooden Spool
Certification: SGS,UL,ISO9001,ISO4001

Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB.
Spool materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg – 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers

Environmental Friendly Gauge 18 Aluminum Chinese Enamel Wires are a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

Enamelled round aluminum wire is mainly used as an electrical conductor wherever coils are in motion.It’s available size in diameters from 0.20mm to 9.2mm(SWG1-36,AWG1-32) with different insulation, such as Polyurethane, Polyester, Polyesterimide, Polyimide etc..

Aluminum is an excellent electrical conductor, and consequently, most electric motor manufacturers offer it as an option in their motor designs. So why isn¡¯t it used more commonly in motor applications? There are economic reasons and performance reasons that limit aluminum¡¯s usefulness in electric motors.

Conductor Type: Solid
Delivery time: 7-30 Days
Thermal Class: 130-220C
Brand Name: LP Magnet Wire
Bobbin: 30kg/50kgWooden Spool
Insulation: PEW, PIW, EIW, AIW, EI/AIW

Grade: 1000 Series
Thickness: 0.2mm–3.0mm
Width: 20mm — 1500mm
Usage: Dry-type transformers, Distribution transformers
Materials Grade: 1060-O, 1050, 1050A, 1070, 1070A, 1350

Standard: IEC, NEMA,GB,JIS
Size: 0.8mm-7.0mm
Brand Name: LP
Thermal Class: 130-220C
Delivery time: 7days-30days

Conductor Type: Solid
Thermal Class: 105℃
Brand Name: LP Magnet Wire
Certifaction: UL, SGS, RoHS, ISO9001
Diameter: Round:2.0-7.0;flat:a:1-10,b:3-35
Model Number: Flat paper covered winding wire
Main Application: Oil-immersed transformer windings

The electric motor winding definition is, windings in electric motors are wires that are placed within coils, generally enclosed around a coated flexible iron magnetic core to shape magnetic poles while strengthened with the current. Electric machines are available in two fundamental magnet field pole configurations namely salient pole as well as a non-salient pole.

LP industry wholesale enameled wire in china, mainly include the enameled alluminium winding wire and enameled copper wire.
Aluminum /Copper Wire/foils
Dimension:0.2–10.0mm,
Rectangular: A> 0.8–8mm, B> 2-22.5mm
Square: 0.4*0.4mm–8*8mm
Foils:Thickness£º0.2–2.5mm, width:60–1250mm

AWG / SWG Rectangular / Flat Aluminum Enameled Winding Wire Widely used in microwave oven transformer, three-phase power transformer, rectifier, demagnetizing coil of large color screen TV, kitchen motors, magnetic mineral separation equipment, parts of spare for automotive, wires and cables, etc.

Flat wire thickness (a): 0.8mm ~8.0mm
Flat wire width (b): 2.0 ~ 25mm
Width (b) /thickness (a) ratio: 1.4 ＜ b/a＜8.0
Enameled flat aluminum wire available size ranges from 1.6-200 mm².
