Conductor Type: Solid Conductor Material: Copper Bobbin: PT-4–PT-200 Standard: IEC,NEMA,GB,JIS Certification: SGS,UL,ISO9001,ISO4001 Product name: Enameled Copper Wire
Grade: 1000 Series Width: 20-1900mm Alloy Or Not: is Alloy Thickness (mm): 0.2-3.0 Brand Name: LP Industry Delivery Time: 46-60 days Processing Service: Bending, Welding, Cutting
Type: insulated Brand Name: LP Thermal Class: 130-220C Standard: IEC, NEMA,GB Delivery time: 10-30 days Size: a:0.1-0.6;b:0.2-6.0mm Conductor Material: Copper
Brand Name: LP Magnet Wire Certification: UL,SGS,RoHS,ISO9001 Conductor Material: copper or aluminum Bobbin: 30kg/50kg/150kg wooden spool Diameter: round:2.0-7.0; flat:a:1-10,b:3-35 Model Number: Paper Coated Copper Wire
Grade: 1000 Series Thickness: 0.2mm–3.0mm Width: 20mm — 1500mm Usage: Dry-type transformers, Distribution transformers Materials Grade: 1060-O, 1050, 1050A, 1070, 1070A, 1350
Available Diameter: 0.16mm–10mm Available Diameter: AWG 1- AWG 34 Available Diameter: SWG 1- SWG 38 Thermal Class(℃）: 180 200 220 240 Insulation thickness: G1 G2 G3 G4 Standard: IEC NEMA JIS GB Certificate: UL SGS Insulation Brand: Elantas Package: PT15 — PT270→carton box →Pallet/wooden case, OR ply-wooden spools→Pallet/Wooden case
Peru’ Las Bambas copper mine will suspend operations from April 20 as poor local communities continue to demand more money from the mine. The mine accounts for 2% of global supply.
Conductor Type: Solid Thermal Class: 105℃ Brand Name: LP Magnet Wire Certifaction: UL, SGS, RoHS, ISO9001 Diameter: Round:2.0-7.0;flat:a:1-10,b:3-35 Model Number: Flat paper covered winding wire Main Application: Oil-immersed transformer windings
Type: Insulated Conductor Type: Solid Delivery time: 7-30 Days Thermal Class: 130-220C Conductor Material: Copper Brand Name: LP Magnet Wire Certification: SGS,UL,ISO9001,ISO4001 Model Number: Insulated AWG 29 Coated Thin wire
The raw materials are pure copper cathodes grade “A” London Metal Exchange Registered Brand with copper purity of 99.99%. This allows our high quality copper busbar and rod to meet International Standards. 1.Volume Resistivity at 20°C/ 68°F 1.7241-1.7070 μΩcm 2.Volume Conductivity at 20°C/ 68°F 58.00-58.58 MS/m 3.Density 8.91 g/cm3 4.Melting Point 1083 °C 5.Excellent Corrosion Resistance
MOQ: 500kg Size: 0.16-9.2mm Conductor Type: Solid Delivery time: 7-30 Days Thermal Class: 130C~220C Brand Name: LP Magnet Wire Conductor Material: Aluminum
Type: insulated Delivery time: 7-30 Days Conductor Material: Copper Standard: IEC,NEMA,GB,JIS Diameter: 0.016mm–9.2mm Brand Name: LP Magnet Wire Bobbin: 30kg/50kg Wooden Spool

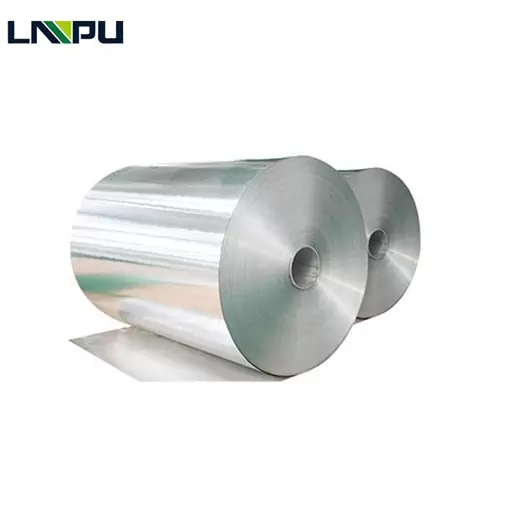

According to the aluminum content, the aluminum foil can be divided into pure aluminum foil and aluminum alloy foil. The pure aluminum foil includes 1050,1060,1100 and 1235. What are their properties and uses? Lets have a look together. Take 1050 and 1060 for making comparison.
Brand Name: LP Conductor Type: Solid Diameter: a:1-10,b:3-16 Standard: IEC,NEMA,GB,JIS Bobbin: 30/50kg wooden spool Temperature class: 180,200,220 Conductor Material: Aluminum

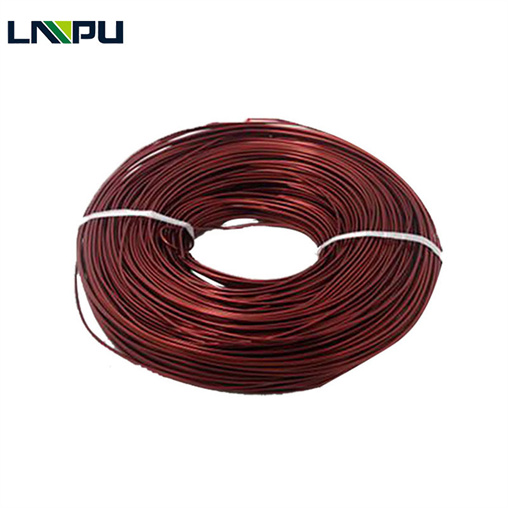

This round enameled wire is made of pure aluminum with insulation,conductors with temperature Class B, F, H, 200˚C, 220˚C are being manufactured by us. Diameter: 0.16mm to 8.0mm Standard: IEC60317, NEMA MW 1000
In North America, aluminum is the predominant choice of winding material for low-voltage, dry-type transformers larger than 15 kilovolt-amperes(kVA).
In most other areas of the world, copper is the predominant winding material. The primary reason for choosing aluminum windings is its lower initial cost.
Tolerance:±1% Width: 20-1900mm Thickness (mm): 0.2-3.0 Brand Name: LP Industry Delivery Time: 46-60 days Model Number: Aluminum Foils
Brand Name: LP Diameter: a:1-10,b:3-16 Temperature class: 180,200,220 Conductor Material: Aluminum Certification: UL,ISO9001,ISO4001 Insulation: PEW, PIW, EIW, AIW, EI/AIW
MOQ: 500kg Size: 0.16-9.2mm Delivery time: 7-30 Days Thermal Class: 130C~220C Brand Name: LP Magnet Wire Application: transformer,motor,generator,modern instrument
Thermal class: 130C、155C、180C、200C、220C、240C Insulation thickness: G1/G2/G3/G4 Carry out standard: IEC60317/NEMA /JIS C3202 Packing for round wire： Cu: PT4/PT8/PT10/PT25/PT60/PT200 Al: PT15/PT25/PT60/PT200/PT270 Flat（CU& Alu）, wooden case, 30kg/50kg/80kg/100kg/150kg per spool net weight is capable.

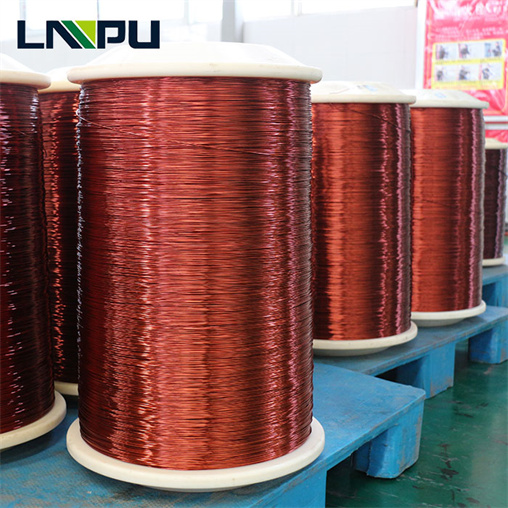

Enamelled Square Magnet Wire – 0.4*0.4mm–9.1*9.1mm Enamelled Flat Aluminum Wire – A> 0.8–10mm, B> 2-25mm Enamelled Round Aluminum Wire – Diameter: 0.15–10.0mm, Enamelled Flat Copper Wire – a: 0.3-8.0 mm, b：2-25.00 mm Enamelled Round Copper Wire – Diameter: 0.016 -7.0mm
Bobbin: PT-4–PT-200 Conductor Material: Copper Brand Name: LP Magnet Wire Certification: SGS,UL,ISO9001,ISO4001 Temperature class: 130,155,180,200,220 Diameter: round:0.025-4.5mm;flat: a:1-10,b:3-16;square :a(b) 0.4-7mm
Size: 0.16-9.2mm Conductor Material: Aluminum Thermal Class: 130C~220C Brand Name: LP Magnet Wire Model Number: 0.2mm Enamelled Round Aluminum Wire
Delivery time: 7-30 Days Brand Name: LP Magnet Wire Thermal Class: 130-220C Standard: IEC,NEMA,GB,JIS Bobbin: 30kg/50kgWooden Spool Model Number: PE Insulated Enameled Copper Wire
Enameled aluminum wire Diameter: 0.8-8mm Temperature Class : 180 , 200 , 220 Standard : IEC 60317-0-2 ,IEC 60317-29 , MW36-A UL NO : E345303 Bobbin :150kg wooden spool , plastic spool . Application : Transformer , generator , refrigeration system
Brand Name: LP Magnet Wire Delivery time: 7-30 Days Conductor Material: Copper Thermal Class: 180-220C Model Number: 0.012 – 0.8mm self bonding wire
Brand Name: LP Magnet Wire Thermal Class: 130-220C Standard: IEC,NEMA,GB,JIS Bobbin: 30kg/50kgWooden Spool Delivery time: 7-30 Days Insulation: PEW, PIW, EIW, AIW, EI/AIW
Rectangular Bar Width 9.53 mm. up to 305 mm. Thickness 2.5 mm. up to 100 mm. Volume Resistivity at 20°C/ 68°F 1.7241-1.7070 μΩcm Volume Conductivity at 20°C/ 68°F 58.00-58.58 MS/m Density 8.91 g/cm3 Melting Point 1083 °C Excellent Corrosion Resistance
Below are the main specification information: Thickness(a): 0.8mm-10mm Width(b): 2.0mm-25mm Thermal Class(℃）: 180 200 220 240 Insulation thickness: G1 G2 G3 G4 Insulation Brand: Elantas Standard: IEC NEMA JIS GB Certificate: UL SGS Package: 30-150kg ply-wooden spool→Pallet/Wooden Case
Flat wire thickness (a): 0.8mm ~8.0mm Flat wire width (b): 2.0 ~ 25mm Width (b) /thickness (a) ratio: 1.4 ＜ b/a＜8.0 Enameled flat aluminum wire available size ranges from 1.6-200 mm².
