Enameled copper magnet wire for motor fan copper winding wire voice coil

The temperature resistance index of Class 155 Reasonable Price Glass Fiber Covered Aluminum Round Wire has three grades: 130, 155, and 180, and the insulation thickness generally has four grades of 20, 30, 40, and 50. This product is widely used in windings of transformers, electromagnets, welding machines or other similar electrical equipment products. Electrician bare aluminum wire produced by extrusion process is the most ideal material for producing glass fiber coated aluminum wire.

UL Certificated 220 High Thermal Class Oxidized Film Aluminum Wire and aluminum strip insulated with aluminum oxide film are used in the fields of electronics, missiles, nuclear reactors, aerospace and aircraft industries. The oxide film has high flexibility and is suitable for winding electromagnetic coils of various shapes and sizes. The use of round or rectangular aluminum wires and aluminum strips can save 50% of metal, so it has commercial value. For example, linear motors and medical equipment industries are widely used because of their light weight and low inertia. For rotating equipment, light weight can simplify the dynamic balance, thus reducing the vibration generated by the dynamic balance, thereby improving the sensitivity of the moving coil and its high-frequency response.

The multi-shaped enamel wire refers to a metal wire for winding electromagnetic coils with an insulating paint, also known as electromagnetic wires. The multi-shaped enameled wire is the primary raw material of electrical, motor and household appliances, telecommunications, electronic external electromagnetic windings. In the future, follow the rapid development of industrial appliances, household appliances, telecommunications, electronic products, etc. Market and application fields.

What is the difference between magnet wire and enameled wire? Enameled wire is a type of magnet wire. but most people called the magnet wire in winding wire or enameled wire. Mostly used for Inductors, transformers, reactors, dry-type transformers, cast resin transformers

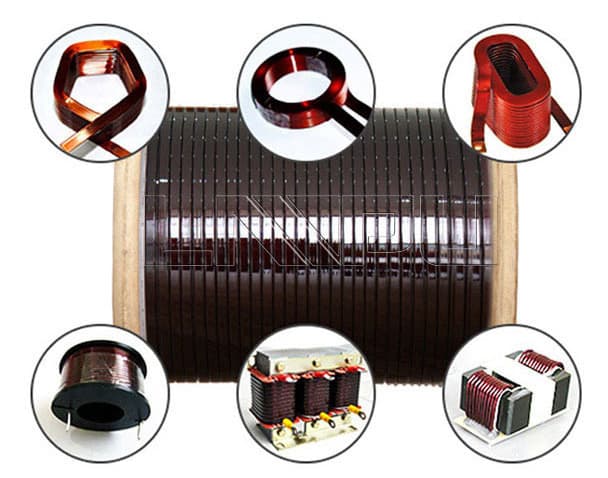

Flat enameled wire is a type of enameled wire. It is a winding wire made of oxygen-free copper rods or electrical aluminum rods that are drawn, extruded or rolled by a certain specification die, and then coated with insulating paint for many times. The thickness is from 0.025mm To 2mm, the width is generally less than 5mm, and its aspect ratio ranges from 2:1 to 50:1. Flat enameled wire has a wide range of uses, especially in the windings of various electrical equipment such as telecommunication equipment, transformers, motors and generators.

The enameled wire has always been a very important industry in the national economy, and with the continuous change and development of the market, the enameled wire industry is constantly adjusting, from the current perspective, the future of the entire enamel wire industry will move towards the future.

Round Enameled Wire is used for transformer coil winding and motor winding, also called electric motor winding wire. And to Measure The Specifications Of Round Enameled Wire is important, include the conductor diameter and insulation diameter.

Advantages of oxide film wire
1. The oxide film is not sealed by insulating paint, and the temperature resistance can reach 250¡æ. The heat resistance of the oxide film sealed with insulating paint depends on the temperature index of the insulating paint;
2. High slot full rate, light weight and good radiation resistance.

Wire Enamel Coating is important used for enameled wire or magnet wire, the application is used for transformer winding coils and motor coils forming insulation to prevent short circuits.

Type: insulated
Delivery time: 7-30 Days
Conductor Material: Copper
Standard: IEC,NEMA,GB,JIS
Diameter: 0.016mm–9.2mm
Brand Name: LP Magnet Wire
Bobbin: 30kg/50kg Wooden Spool

Copper Clad Aluminum Wire is a new enameled wire, is composed of aluminum conductor covered with copper materials, maybe self-bonding, also called self-bonding enameled wire. And the short word is ECCA.

Question: During our production process, we found that one axis of enameled wire is wound around the axial inductance. This axis of enameled wire and other axis of enameled wire are wound on the same magnetic core. The inductance of the enameled wire with this axis is relatively high. We made 1mH inductance, and the enameled wire of the other axis was only 960uH, and the problematic wire of this axis was 1.025mH, and the inductance test frequency was 796kHz. (1) The number of stitches is the same as the number of turns, excluding the slip ring. (2) The 1-meter straight resistance is a bit smaller than that of other shafts. I personally think that the enameled wire contains magnetic substances, but if it contains magnetic substances, the resistivity should be greater, and the DC resistance should be greater. So please help to solve the problem, or have encountered this kind of problem before, please analyze it, thank you in advance!

The main advantage of the TIW wires is relatively high electric strength of the insulation, with breakdown voltage min. 6kV. Obtaining such a high resistance was possible by the use of a reinforced, three-layer conductor insulation. Third external insulation made of polyamide gives excellent flexibility and high mechanical resistance of the wire. Normally, TIW wires are produced in thermal class B. Fully automated manufacturing process provides a central position of conductor and the same thickness of insulation at any point of the wire.

1060 Transformer Aluminum Strip Product Description:
060 transformer aluminum belt is a special purpose aluminum belt product produced for transformers. It uses high-purity aluminum substrate and aluminum deep-processed products formed by slitting aluminum coils with an aluminum content of more than 99.60%. The raw material of transformer aluminum strip is high-purity aluminum, which is rolled into thin sheet aluminum coils of different thicknesses and widths by a cold rolling mill, and then longitudinally slitted into aluminum strips of different widths by a slitting machine according to the application. It is an important raw material in industry. The main processing equipment of 1060 transformer aluminum strip is slitting unit, which can be divided into required length and width according to needs. Usually the transformer aluminum strip is slit according to the actual needs of the user, which can reduce waste, reduce processing procedures (without cutting), and save raw material costs.

1. Mechanical function: including elongation, return angle, softness and adhesion, scraping, tensile strength and other items.
2. Heat resistance: including thermal shock and softening breakdown test.
3. Electricity includes: breakdown voltage, lacquer film continuity and DC resistance test.
4. Chemical resistance includes solvent resistance and welding.

After the product is manufactured, whether its appearance, size and performance meet the requirements of the technical standards of the product and the technical agreement of the user must be judged by the inspection beam and measured; the test shall be compared with the technical standard of the product or the technical agreement of the user and meet the requirements If it is qualified, otherwise, it is unqualified. Passing the inspection can reflect the stability of the enameled wire product quality, the material and the rationality of the process. Therefore, the quality inspection has the function of checking, preventing and identifying.

Another important usage of copper is in manufacturing wire gauges that are largely use in measuring the diameter of wire.
Similarly aluminium is also largely use for electrical application.

Class F Glass Fibre Insulated Aluminium strips is a high-quality aluminum wire that is evenly wrapped with alkali-free glass fiber. It is impregnated and baked with the required temperature resistance index and compatible bonding paint to make the glass fiber between the glass fiber It is bonded to the conductor as a whole, and the insulating layer has a certain degree of wear resistance, adhesion, flexibility and voltage resistance. This type of winding wire has good thermal shock and overload resistance. At present, the temperature resistance index of this kind of products has three grades: 130, 155, and 180. F grade refers to 155 grade.

Glass-fiber covered aluminum magnet wire used to have weak coating strength (abrasion resistance, shock resistance, and flexibility). However, that disadvantage has been significantly improved recently by refining material selection and manufacturing methods. The demand for glass-fiber covered aluminum magnet wire is increasing as the wires have excellent uniformity and electrical properties under high temperatures and humidity.

Fiberglass Covered Insulated rectangular aluminum wire is in accordance with customer requirements in aluminum conductor uniform whole winding package 1-2 layers of alkali-free fiberglass, with the necessary temperature resistance index and compatible adhesive paint dipping and baking process, glass fiber and conductor between bonded into a whole.

High Temperature Aluminum Magnet Wire (Anodized aluminium wire) belongs to the special electromagnetic wire and the insulation layer is the aluminum oxide . Because of no thermal aging phenomenon, it can be used as insulation level of class 220.
The insulation layer of such product is thin, high temperature resistance and insulation performance stability,which is the best choice for low voltage winding wires with producing high temperature, poor environment, heat dissipation difficulty and so on.
It can widely be used in electromagnetic industries at home and abroad.

Product Introduction :
Nomex covering corresponds to class H insulation is mainly used in the construction of condensers and capacitors. Main application of it is in shielding of cables in high temp. environments (200¡ãC) such as dry type transformers, military and aerospace cables. Nomex covered conductors are more effective in condition where temperature resistance and dielectric strength requirements are high.

By extrusion of bare aluminum wire wrapped and Nomex Paper covered wire, the mechanical performance and electrical performance better, instead of making difficult composite enameled flat wire, suitable for transformer, winding of lifting electromagnet, electric welding machine and other products.

Good Quality Paper Covered Flat Aluminum Enameled Copper Wire is made of bare copper wire or bare aluminum wire, or paper-covered wire as the core, wrapped with paper for insulation. According to customer and national standards, the conductor is wrapped with telephone paper, electromagnetic paper, and high-density inter-turn insulation paper. As conductor insulation, it is an ideal material for civilian-made oil-immersed transformers; especially semi-hard insulated copper wires, which can significantly improve the winding resistance. The mechanical properties and short-circuit resistance can be widely used in the winding of large and medium-sized transformers.

Correspondence table of enameled wire diameter and resistance value
The resistivity of the copper wire ρ= 0.0172, the aluminum wire ρ = 0.0283, the wire resistance calculation formula:
R=ρ×L/S
(L = wire length, unit: meter, S = wire cross section, unit: mm^2)

The current mainly passes along the copper-clad aluminum wire on the surface of the wire, which is called the skin effect. The higher the frequency, the more obvious it is. The copper-clad aluminum wire uses this feature to save material. But its resistivity is slightly higher than that of pure copper wire, and the resistivity is also different with the thickness of the copper clad.

1. What factors affect the softness of the enameled wire and the elongation?

The softness and elongation are good to reflect the quality of the copper quality and the enameled annealing process, and they have a big relationship for the quality of the winding.

2. What is the effect of the thickness of the paint film?

The first tasty or coated is too thick to affect aging performance. The furnace temperature control has a greater impact on aging performance.If the evaporation zone is too sharp, it has a sparp and porront on the paint film, which is poor in these places. The heat of it is high, affecting the thermal aging performance.

3. EffectWhat are the reasons for the bucket breakdown voltage?

Oxe film circle. Overseas impurities in the paint film. Curing. The thickness of the paint film

4. What are the factors affecting the thermal shock??

Influence of the kitcase process. The effect of copper wire. Influence of paint

The enameled wire manufacturer takes you to understand the high-temperature paint wrap of high-temperature paint wires, and it is necessary to judge, whether its appearance, size, and performance meet the technical standards of the product and user technical agreements. After the measurement, test, the technical standards of the product and the technical agreement of the product are compared to the requirements for qualified products, which does not meet the requirements for unqualified products.

The voltage resistance performance of enameled wire is mainly affected by several factors:
1. The thickness of the insulating layer, not much nonsense;
2. The degree of aging of the insulating layer and the degree of baking affect the withstand voltage.
3. The quality of the insulation layer is mainly the pinhole performance.

Enameled wire is a type of electromagnetic wire, usually refers to the insulation wire used to make coil or winding in electrical products. It is also called the winding wire.
The electromagnetic wire must meet the requirements of various applications and manufacturing processes. The former includes its shape, specification, working at high temperature in short and long time, as well as the strong vibration and centrifugal force under high speed on certain occasions, resistance to corona and breakdown under high voltage, and chemical corrosion resistance in special atmospheres, and the requirements for tensile, bending and wear, as well as the requirements of drawing, bending and wear during winding and inlaying. Swelling and erosion during immersion and drying.

Polyimide Kapton Covered Enameled Aluminum Wire Strip is a multi-layer polyimide & fluoropolymer dispersion-coated film. The fluoropolymer coating functions as a heat-fusible layer for bonding to magnet wire conductors. It has superior scrape abrasion resistance and exhibits lower frictional properties than wire insulated with other commonly used polyimide materials. Polyimide film aluminum wire is ideal for demanding magnet wire applications and for difficult-to-wind motors.

To weld the lead aluminum enameled wire, it is necessary to remove the paint (there are very few household electric fans with very low requirements, and the ballast manufacturer does not remove the paint). The paint removal methods are listed below.
(1) It can be scraped with a blade,
(2) It can be peeled with a centrifugal knife,
(3) The paint can also be rubbed off with a grinding wheel,
(4) Of course paint remover is also available,
(5) You can also use high-temperature tin to burn the paint,
(6) Some people burn with fire
(7) Of course you can also use paint remover to remove paint
