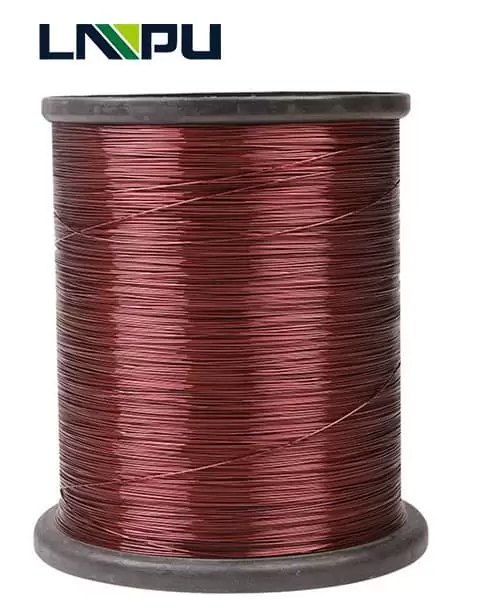

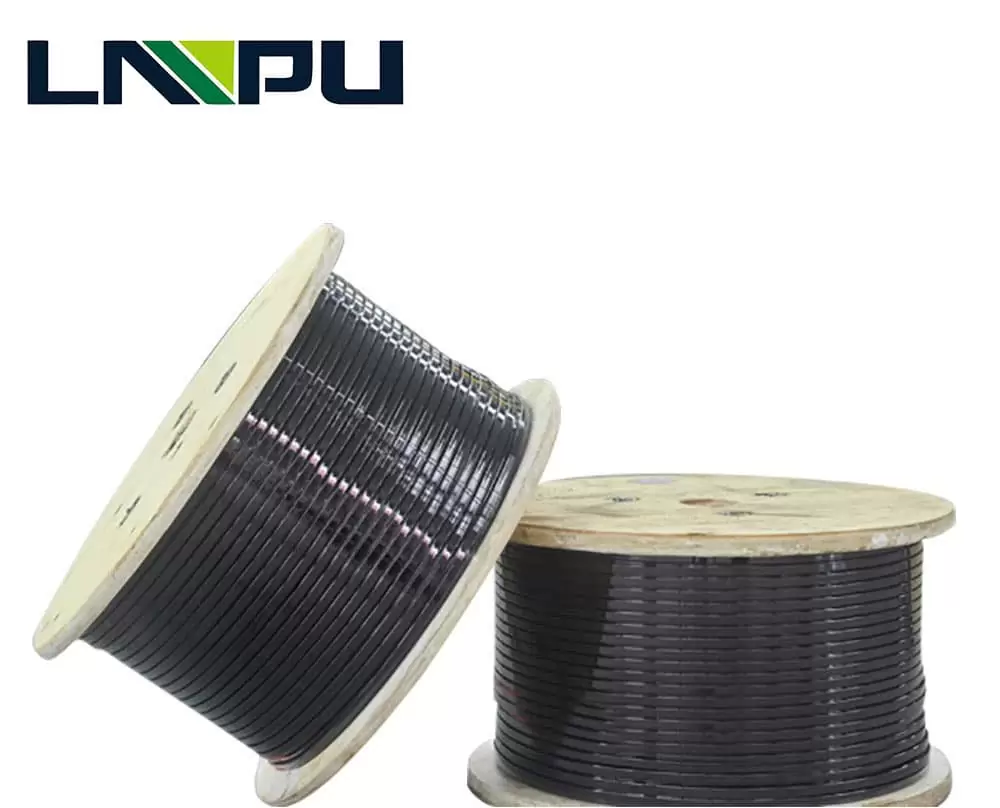

EAL-Enameled Aluminum Wire

Product Name:enameled aluminum copper wire
Type: flat wire
Round Dimension:28 Gauge
Conductor Material:Aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas: QZ
Thermal Class:155¡æ

MOQ: 500kg
Size: 0.16-9.2mm
Conductor Type: Solid
Delivery time: 7-30 Days
Thermal Class: 130C~220C
Brand Name: LP Magnet Wire
Conductor Material: Aluminum

LP Industry manufacture a broad assortment of Enameled Aluminium Wires, which is an aluminum conductor, commonly known as aluminium stranded conductor. Our range is manufactured using 99.5% pure electrolytically refined EC grade aluminium. We offer this corrosion resistance wire in varied specifications of diameters, mass, resistance, and breaking load.

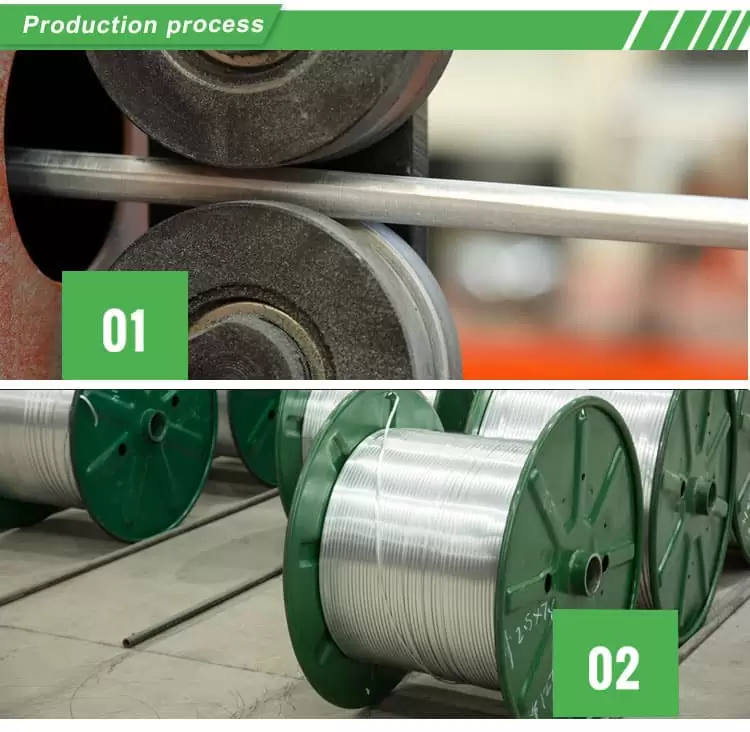

LP Industry is a professional magnet wire manufacturer in China, mainly poduce the round aluminum winding wire and flat aluminum enameled wire. Magnet Wires Manufacturing Process includes extruding wire in suitable size, cleaning wire, wire enamel insulating varnish and winding on spool.

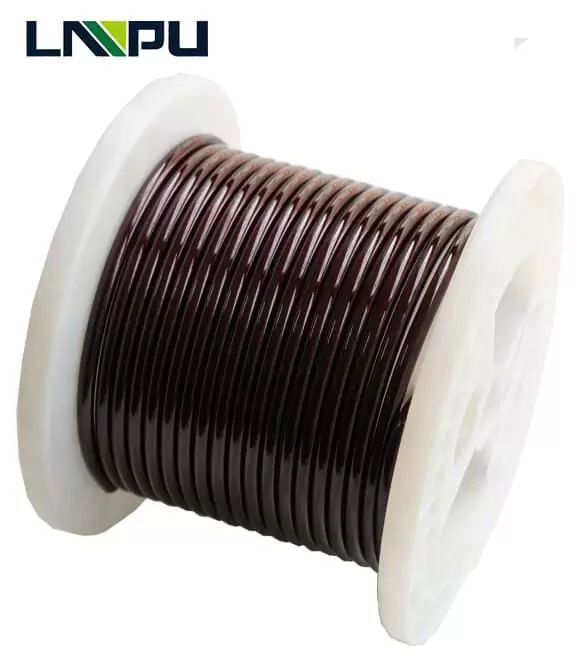

High Temperature Round Polyimide Enameled Aluminum Wire normally include 200 class C, 220 Class C+, 240 Class HC with good performance double coating. And the enameled aluminum wire is dry type transformers, stator winding fractional and integral H.P motors, D.C Field and Armature windings, Motors for Hermetic grade, Hand tools, Chemicals Industries, Furnaces and high Torque, continuous rated, all Home appliances machine motors, Auto electrical, coil application-varnished or unvarnished.

Advantage High Temperature 180 200 Degree Power Transformer Winding Aluminum Wire:
1. Compared with the copper enameled wire, enameled aluminum wire is easier to be winded, also there is a solid oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.
2. Due to the good insulating effect of aluminum film layer, it¡¯s heat-resistant temperature can be 20 degrees higher than that of the copper wire;
3. The greatest benefit of using aluminum is that it is 1/3 lighter than copper which significantly lower the production costs, secondly it can attach to the solids easily, and thirdly it can also reduce the freight and operation during transportation.

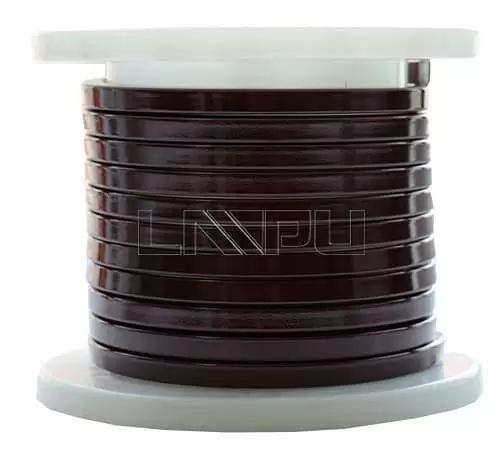

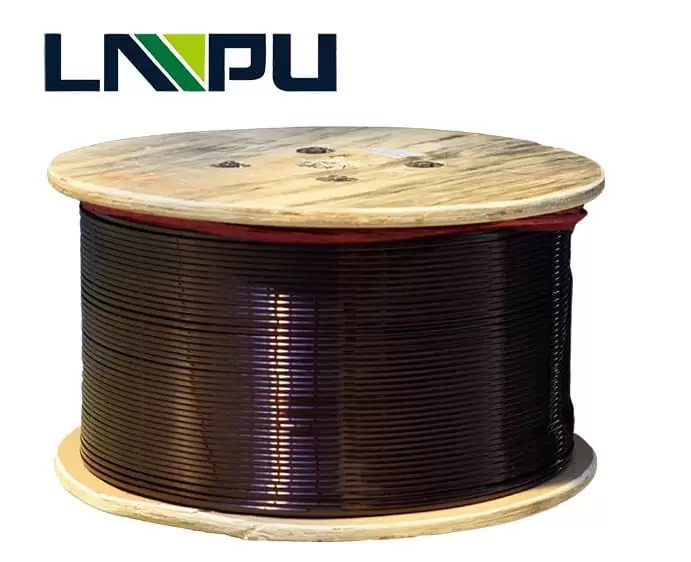

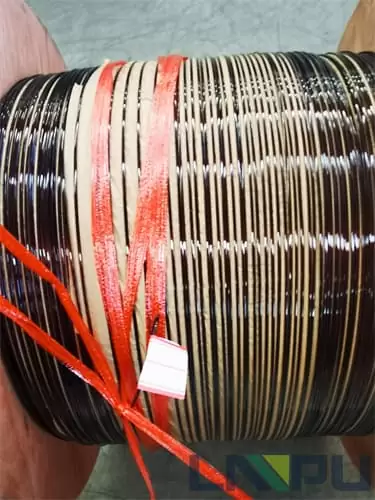

Rectangular Aluminum Magnet Wire
Rectangular: A> 0.8–8mm, B> 2-22.5mm
Wire Enamel: UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) ;
thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC)

LP Industry is a Insulated Winding Aluminum Wire Manufacturer in China, Mainly produce UL certificate RoHS round aluminum enameled wire and flat aluminum magnet wire used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers. Normaly we also produce the 0.016-7mm enameled round copper wire and flat copper wire.

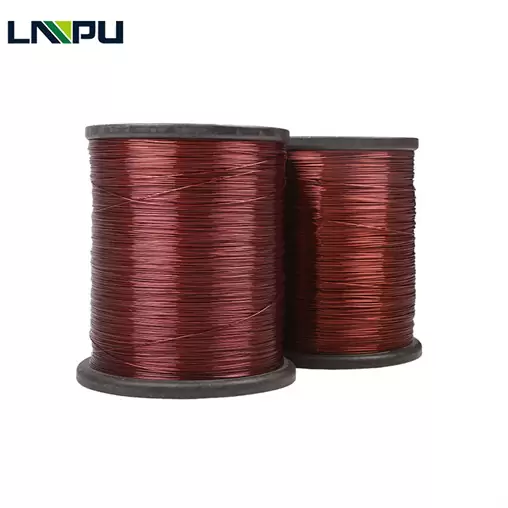

Product Name£º18 Gauge Aluminum Winding Wire
Type: round and rectangular copper wire
Round Dimension:18 Gauge
Conductor Material£ºAluminum
Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºUEW, QZ, QZY, EIW, etc.
Thermal Class:105, 120, 140, 155, 180, 200, 220, 240

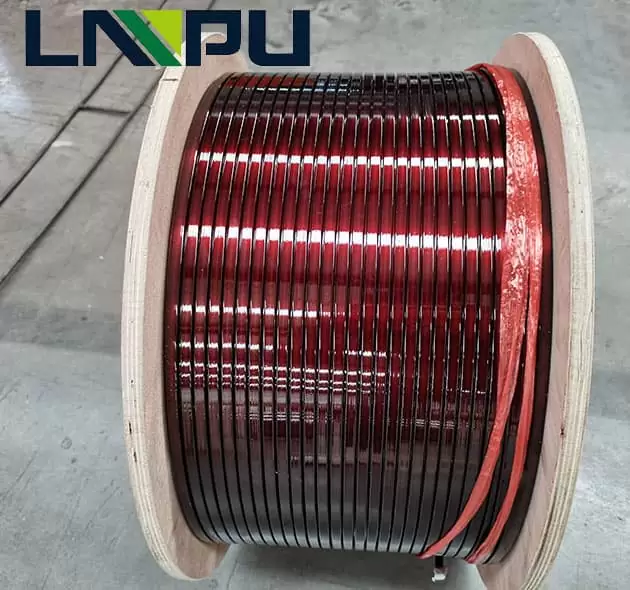

High Thermal Solderable polyester-imide Enameled Aluminum wire refers to the electrical round aluminum rod drawn by a certain specification die on the wire, according to customer requirements, with the required temperature index and compatibility insulating paint , Use mold type or felt type paint to paint multiple corresponding insulating paints. After baking treatment, the insulating paint and the wire form a whole.

Enameled Aluminum Wire is also called magnet aluminum wire, which is used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers and is composed of aluminum conductor and insulation materials. The aluminum winding wire can be divided into flat type and round type.

Brand Name: LP
Size: 0.8mm-7.0mm
Delivery time: 7-30days
Thermal Class: 130-220C
Certification: UL,ISO,ROHS
Model Number: square magnet wire

Solderable Polyester Insulation Electric Motor Magnet Wire is widely used in electrical tools ballasts,automotive electronics,refrigerator and air conditioner compressor motors, television sets, eletric stove, microwave ovens, various transformers, and other kinds of electronic coil motors, electrical appliances.

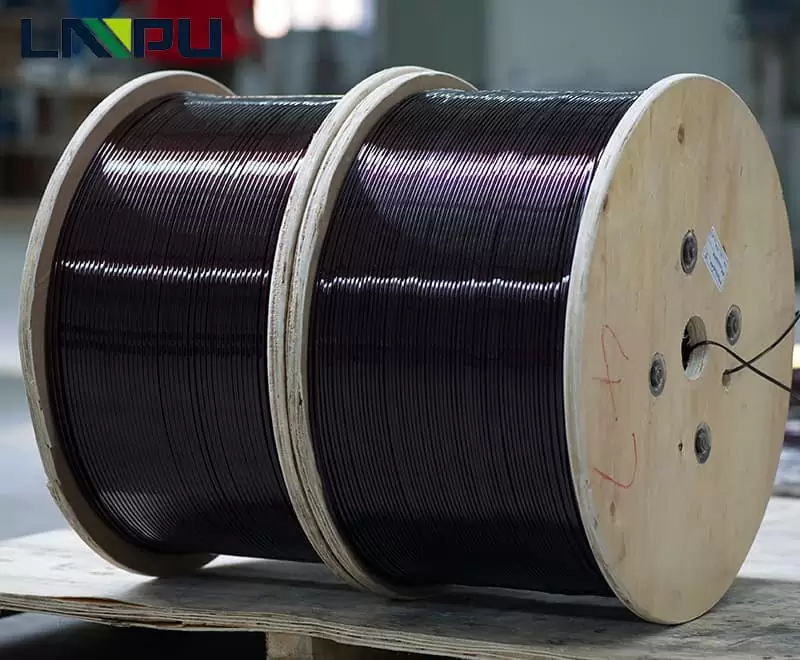

Standard Size Range Round Type Enameled 0.50 mm Aluminum Wire is sometimes used in large transformers and motors, but due to its low conductivity, the cross-sectional area of aluminum enameled wire must be 1.6 times that of copper wire in order to obtain comparable DC resistance. Magnet wires with a smaller diameter usually have a circular cross-section. Thicker aluminum magnet wires are usually square or rectangular (with rounded corners) to allow more efficient use of the available winding space.

Below are the main specification information:
Thickness(a): 0.8mm-10mm
Width(b): 2.0mm-25mm
Thermal Class(℃）: 180 200 220 240
Insulation thickness: G1 G2 G3 G4
Insulation Brand: Elantas
Standard: IEC NEMA JIS GB
Certificate: UL SGS
Package: 30-150kg ply-wooden spool→Pallet/Wooden Case

Polyester-Imide Series Enamelled Wirer For Oil-Transformer has the characteristics of high temperature resistance, good mechanical properties, excellent insulation properties and environmental sensitivity to meet the requirements of high-tech development in aerospace, microelectronics, electrical, chemical, energy technology and other high-tech developments.

Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB.
Spool materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg – 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers

Specifications of Polyester Film Wrapped Aluminum magnet Wires Strips
Specifications :
Has good heat resistance, conditions in 180¡ãC baking 24 hours performance unchanged;
High mechanical strength, good abrasion resistance and flexible;
Excellent withstand voltage properties;
Resistant to moisture absorption, moisture proof;
High breakdown voltage up to 5000~10000V (as required);
Compared to glass-fiber wound wire, lightweight specific gravity, thus reducing purchase cost;:
Has good heat resistance, conditions in 180¡ãC baking 24 hours performance unchanged;
High mechanical strength, good abrasion resistance and flexible;
Excellent withstand voltage properties;
Resistant to moisture absorption, moisture proof;
High breakdown voltage up to 5000~10000V (as required);
Compared to glass-fiber wound wire, lightweight specific gravity, thus reducing purchase cost;

Width: 20-1900mm
Place of Origin: Henan, China
Brand Name: LP Industry
Thickness (mm): 0.2-3.0
Delivery Time: 46-60 days
Alloy No.: A1050,A1060, A1070,A1100,A1235,A1245

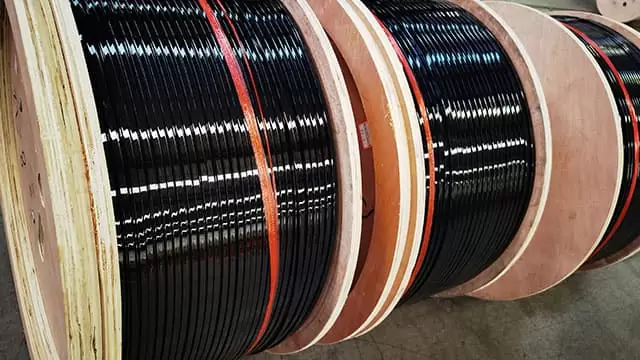

Product Name:enameled aluminum wire
Type: round and rectangular aluminum wire
Diension:AWG33
Conductor Material:aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Product Name£ºclass 155 enamelled aluminum winding wire 32swg
Type: round type
Dimension: 32swg class 155 temperature
Conductor Material£ºAluminum
Enameled copper wire Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºUEW, QZ, QZY, EIW, etc.

Product Name:enameled aluminum wire
Type: round and rectangular aluminum wire
Round Diension:0.15-6.5mm
Conductor Material:aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Product Name:18 gauge enameled aluminum wire
Type: round and rectangular aluminum wire
Round Dimension:18 gauge
Conductor Material:aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Conductor Type: Solid
Delivery time: 7-30 Days
Thermal Class: 130-220C
Brand Name: LP Magnet Wire
Bobbin: 30kg/50kgWooden Spool
Insulation: PEW, PIW, EIW, AIW, EI/AIW

Environmental Friendly Gauge 18 Aluminum Chinese Enamel Wires are a copper or aluminium wire coated with a very thin layer of insulation. It is used in the construction of transformers, inductors, motors, speakers, hard disk head actuators, electromagnets, and other applications that require tight coils of insulated wire.The wire itself is most often fully annealed, electrolytically refined copper. Aluminium magnet wire is sometimes used for large transformers and motors. The insulation is typically made of tough polymer film materials rather than enamel, as the name might suggest.

Transformers wound with aluminum or copper coils have similar losses and performance. Losses in the transformer¡¯s coil are a function of the current carrying capacity of the wire or foil used to wind them and the actual current. Therefore, a larger wire is used when winding aluminum coils to make up for the lower current carrying capacity and efficiency of aluminum.

Enameled aluminum wire
Diameter: 0.8-8mm
Temperature Class : 180 , 200 , 220
Standard : IEC 60317-0-2 ,IEC 60317-29 , MW36-A
UL NO : E345303
Bobbin :150kg wooden spool , plastic spool .
Application : Transformer , generator , refrigeration system

China Supplier Wholesale Magnet Cable Coated Enameled Aluminum Wire Price

UEW Standard Enamlled Aluminum Round Transformer Winding Wire is a main kind of winding wire. It consists of conductor and insulating layer. After annealing and softening, the bare wire is painted and baked many times. However, it is not easy to produce products that meet both standard requirements and customer requirements. It is affected by raw material quality, process parameters, production equipment, environment and other factors. Therefore, the quality characteristics of various enameled wires are different, but they all have four major properties: mechanical, chemical, electrical and thermal properties.

So far, most of transformer, motors and generator manufacturer used the copper magnet wire with its high performance. Nowadays, the enameled aluminum wire uses widely in low-voltage dry type transformer, and motores, which can gradually the copper wire.
