In the long-term thermal aging test, three or more temperature points are usually selected for accelerated aging, commonly known as “three-point aging”.

The samples for the aging test are stranded enameled wire pairs. The production of the stranded pairs should meet the requirements of ASTM D2307 or NEMA 1000 standards, including the weight to be applied when making the stranded pairs, the number of twisted turns, the effective length of the stranded area, and The length of the two ends of the twisted pair, etc. When making a twisted pair, the required force and the number of twist turns will vary depending on the diameter of the wire. The effective length of the stranded area has nothing to do with the wire diameter, the effective length is 121¡À6 mm, and the two ends are at least 50 mm long. At least 10 twisted pairs per temperature point and mounted on twisted pair racks for high temperature aging test.

In recent years, the price of electrolytic copper has continued to rise, which has brought a huge impact to the production of related copper wire raw materials and enameled wire suppliers. The use of copper-clad aluminum enameled wire has been proved by users to replace pure copper enameled wire, thus providing a huge business opportunity and a broad market for the development of my country’s enameled wire industry. The new type of Enameled Copper Coated Aluminum Magnet Wire For Voice Winding using copper clad aluminum material as the inner conductor has characteristics between copper and aluminum, combining the excellent conductivity of copper and the light weight of aluminum.

Copper-clad aluminum wire is made of a solid aluminum core covered with a copper skin in order to improve its performance in the field. Copper clad aluminum wire is very different from solid EC grade aluminum wire. For one, CCA belongs to a species of metals known as ¡°Bimetallics,¡±
Conductor materials: copper and aluminum

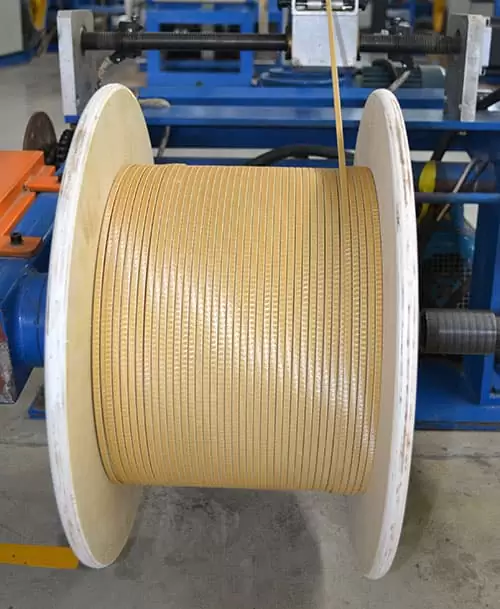

Fiberglass Covered Aluminum Wire Production Proce

One step :
Take the pure aluminum material drawing into the aluminium rod wire;

Two step :
Through the extrusion production line, take the aluminum rod wire into extruding and coarse drawing operation, then becoming the requirement specification of Bare aluminium wire;

Three step :
Take up the Bare aluminum wire conductor, and inspection the bare wire coil products;

Four step :
Annealing the bare aluminum wire, and placed neatly, ready to production;

Five step :
Pay-off the wire coil products, ready to fiber glass covering production;

Six step :
Taking into straightening and tension levelling operation, and then for the covering fiber glass;

Seven step :
Doing the fiber-glass covering operation, and inspecion the production process;

Eight step :
Packing the fiberglass covered wire products, and placed neatly in the warehouse.

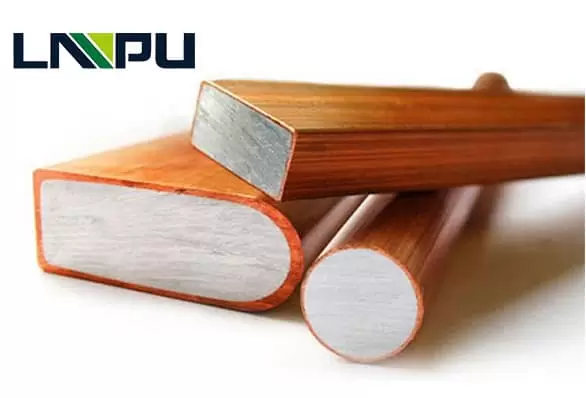

Enameled Copper Coating Aluminum Wire refers to the wire with aluminium core as the main body and a certain proportion of copper coating on it. It can be used as conductor of coaxial cable and conductor of wire and cable in electrical equipment.Polyurethane enameled wire; thermal grade 130, 155, 180, 200. It is characterized by direct welding, good high frequency resistance, easy coloring and good moisture resistance.

The AWG tables are for a single, solid and round conductor. The AWG of a stranded wire is determined by the cross-sectional area of the equivalent solid conductor. Because there are also small gaps between the strands, a stranded wire will always have a slightly larger overall diameter than a solid wire with the same AWG.

1. Conductor resistance ¡ª The resistance of a conductor is proportional to its length and inversely proportional to its cross-sectional area.
2. Conductivity¡ªBased on the resistance 1/58ohm (0.017241 ohm) of a standard soft copper wire with a length of 1m and a cross-sectional area of 1mm2 at 20¡æ, it is called 100% conductivity. The greater the resistance, the lower the conductivity, and the two are inversely proportional.
3. Bending resistance¡ªfix one end of the single wire, add weight to the other end to make it vertically downward, and then bend it back and forth 180 times until the wire breaks. The more bending times, the stronger the bending resistance.
4. Tensile breaking force¡ªthe maximum load weight or force applied to the specimen to break it during a tensile test.
5. Tensile strength¡ªthe breaking force per unit area to bear when the sample is broken during the tensile test.
6. Elongation ¡ª the ratio of the length of the sample after being stretched until it breaks to the original length at the specified standard distance. Conductors have different impedances at different temperatures.
Generally, 20¡ãC or 25¡ãC is the standard. The higher the temperature, the greater the impedance.

These Paper wrapped insulated aluminium wires enamelled and Strips are made from very high quality raw material which ensures hassle free work performance at its user end. These Paper Covered Aluminum Wires and Strips are technologically advanced and confirm to industrial quality norms of international standard. These Paper Covered Aluminum Wires and Strips are widely finds its applications in various industrial sectors.

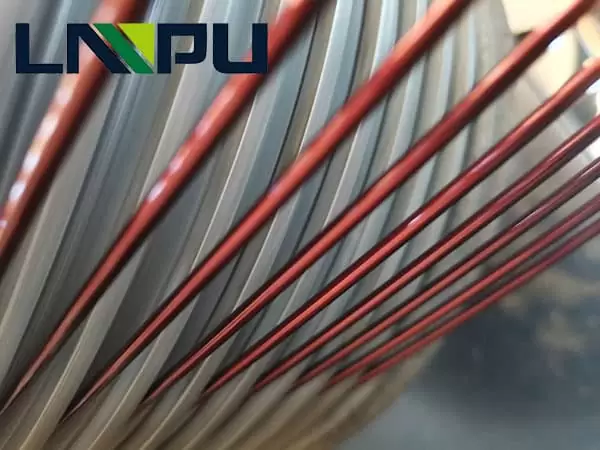

enameled aluminum wire is composed of aluminum conductor and insulation materials, which is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Aluminum Conductor is main type of enameled wire.

What is the difference between magnet wire and enameled wire? Enameled wire is a type of magnet wire. but most people called the magnet wire in winding wire or enameled wire. Mostly used for Inductors, transformers, reactors, dry-type transformers, cast resin transformers

Speaking of the copper enameled wire, I believe everyone should know. Today, we introduce you to a wire, ie the copper paint package. Let us simply look at the transportation and preservation of copper-clad aluminum wires, because if many wires are transported incorrect, it is very likely to be used, so let us simply understand the transportation and preservation of the copper paint wire, so you can be here.

Wire enamel insulating varnish is a kind of paint that can produce a good insulation layer between the wires in the winding. It is mainly used for the outer layer of bare copper wire, alloy wire and glass wire covered wire of various wire diameters to improve and stabilize the performance of enameled wire.

Enameled Rectangular Wire is one type of magnet wire, normally used for transformer, motors, generators, and gradually instead of round magnet wire.
Enameled Rectangular Copper Wire: A> 0.8–8mm, B> 1-22mm
Enameled Rectangular Aluminum Wire: A> 0.8–8mm, B> 2-22mm

Heat resistance refers to the properties of a substance that can maintain its excellent physical and mechanical properties under heated conditions. The highest use temperature of commonly used materials to characterize. There are different standards and test methods for different materials. Such as plastics are generally expressed by Martin heat-resistant temperature. The coating industry uses a blast constant temperature oven or a high temperature furnace. After it reaches the specified temperature and time, the surface condition of the paint film is inspected, tested, or other properties such as impact, bending, water immersion, salt spray test, etc., and then before and after Test data representation. All coatings used in higher temperature occasions must use heat resistance as an important technical indicator of the coating film

The glass in Glass Fibre Conductor may be applied in woven tape form or as a continuous fibre. It has proved to be an efficient insulation providing coil winders with thermal stability, adequate electrical properties and good resistance to abrasion after varnishing. The glass is bonded with a varnish to improve dielectric strength and mechanical properties.

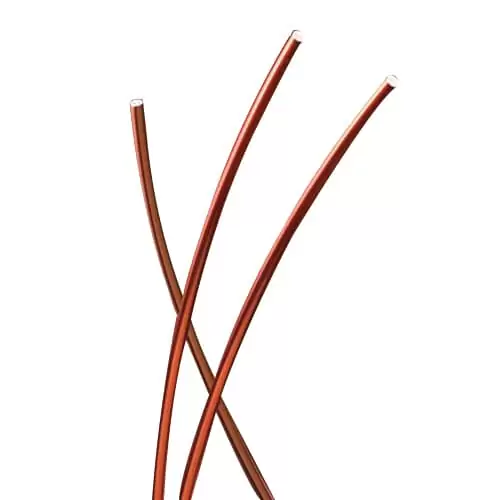

What is called Magnet Wire? The magnetic wire is a copper wire with an enamel (a kind of paint ) coating on it, and used for transformer coils and motor coils. Copper wire is a conductor, like bare copper.

There are some differences between polyester enameled wire and polyurethane enameled wire in terms of use occasions and performance:
Polyester enameled wire, composed of copper conductor and polyester resin, has a thermal class of 130, and after modification, the thermal class of the enameled wire is 155. It has good mechanical strength, paint film adhesion, excellent electrical, scratch resistance, chemical resistance, thermal stability and solvent resistance. It is widely used in various motors, electrical appliances, meters, telecommunications equipment and home appliances; the weakness of this product is poor thermal shock resistance and low moisture resistance.

Polyurethane enameled wire, thermal grade is 130,155,180. The biggest feature is that it has direct solderability, good high frequency resistance, easy coloring, and good moisture resistance. It is widely used in electronic appliances, precision instruments, telecommunications, and meters. The weakness of this product is that the mechanical strength is slightly poor, and the heat resistance is not high. , And the flexibility and adhesion of the production of large-size wires are poor, so the specifications of the product are mostly small and medium-sized wires.

Inductive sensors have outstanding advantages such as simple structure, fast dynamic response, and easy non-contact measurement. They are especially suitable for acids, alkalis, chlorides, organic solvents, liquid CO2, ammonia, PVC powder, ash, oil and water. Liquid level measurement such as interface is currently widely used in metallurgy, petroleum, chemical, coal, cement, food and other industries.

Brand Name: LP Magnet Wire
Certification: UL,SGS,RoHS,ISO9001
Conductor Material: copper or aluminum
Bobbin: 30kg/50kg/150kg wooden spool
Diameter: round:2.0-7.0; flat:a:1-10,b:3-35
Model Number: Paper Coated Copper Wire

Type: insulated
Delivery time: 7-30 Days
Conductor Material: Copper
Standard: IEC,NEMA,GB,JIS
Diameter: 0.016mm–9.2mm
Brand Name: LP Magnet Wire
Bobbin: 30kg/50kg Wooden Spool

1. Cutting
The enameled wire is composed of a conductor and an insulator, and the hardness of the two parts is very soft, so it can be cut by using a TabCUT-200 precision cutting machine with a general SiC cutting chip. Since the insulator is coated on the conductor, and its hardness and ductility are quite different, and the insulating layer has a certain degree of peeling, it is better to use some soft materials such as tin foil, rubber, etc. to wrap the cutting part when cutting. Up to prevent the insulation layer at the fracture from peeling off after cutting.

Flat enameled wire is a type of enameled wire. It is a winding wire made of oxygen-free copper rods or electrical aluminum rods that are drawn, extruded or rolled by a certain specification die, and then coated with insulating paint for many times. The thickness is from 0.025mm To 2mm, the width is generally less than 5mm, and its aspect ratio ranges from 2:1 to 50:1. Flat enameled wire has a wide range of uses, especially in the windings of various electrical equipment such as telecommunication equipment, transformers, motors and generators.

Standards Of Enameled Wire includes
1）IEC 60317 for Europe
2）JIS C3202 for Asia
3）NEMA MW 1000C (inch) or NEMA MW 1000C metric (mm) for North America

In theory, any enameled wire can realize the mutual conversion between electric energy, magnetic energy and kinetic energy. However, the use of enameled wire has a processing process, and electrical products also have different working environments. Therefore, in the selection of enameled wire And when substituting, the characteristics of various enameled wires must also be considered.

Copper Clad Aluminum Wire is a new enameled wire, is composed of aluminum conductor covered with copper materials, maybe self-bonding, also called self-bonding enameled wire. And the short word is ECCA.

Compared with general round wires, flat enameled wires have the following advantages:
Higher floor area ratio and better use of space: The high conductor density enables coils and components of the same size to achieve higher efficiency, save materials and reduce costs.

The voltage resistance performance of enameled wire is mainly affected by several factors:
1. The thickness of the insulating layer, not much nonsense;
2. The degree of aging of the insulating layer and the degree of baking affect the withstand voltage.
3. The quality of the insulation layer is mainly the pinhole performance.

For Aromatic polyimide tape-covered aluminum magnet wire, after the aluminum magnet wire is taped with a tape that is 1.5 mm thick with 1.0 mm of this thickness being polyimide film and the remaining 0.5 mm being fluoroplastic, it is heated and heat-sealed.

The infrared spectrum analysis test is based on the standard UL746A, which only confirms the chemical composition of the paint film, establishes the infrared spectrum and retains it. After the enameled wire is certified, samples will be sampled for testing every year during the follow-up inspection service. The infrared spectrum made by the paint film on the sampled sample needs to be compared with the infrared spectrum established on the sample at the time of certification. The two infrared spectrums must be comparable. superior.

1. Mechanical function: including elongation, return angle, softness and adhesion, scraping, tensile strength and other items.
2. Heat resistance: including thermal shock and softening breakdown test.
3. Electricity includes: breakdown voltage, lacquer film continuity and DC resistance test.
4. Chemical resistance includes solvent resistance and welding.
