Chinese plastic transformer enameled wire for electric tools

Product Name:enameled aluminum wire
Type: flat wire
Round Dimension:A> 0.8–8mm, B> 2-22.5mm
Conductor Material:Aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

AWG Enameled Aluminum Winding Wire sometimes referred to as ¡°Winding Wire¡± is a copper or aluminum wire that is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Magnet wire is used in transformers, generators and a long list of electrical components in almost anything with an electric motor.

Conductor Type: Solid
Thermal Class: 105℃
Brand Name: LP Magnet Wire
Certifaction: UL, SGS, RoHS, ISO9001
Diameter: Round:2.0-7.0;flat:a:1-10,b:3-35
Model Number: Flat paper covered winding wire
Main Application: Oil-immersed transformer windings

LP Industry does elongation test
2UEW PT-10 Class 180 Enameled round aluminum wire
the elongation is qualified about 24% -28% by IEC 60815.
Dimension: AWG12
Elongation is the ratio of the increase in length to the original length, expressed as a percentage. On an extensometer or tensile testing machine, stretch a straightened sample with a free test length of 200mm-250mm to the breaking point of the conductor at a rate of (5+1) mm/s, and calculate the linear increase in length at break and The ratio of the free test length is expressed as a percentage. Three samples are measured, the three test values are recorded, and the average value is taken as the elongation at break.

Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB.
Spool materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg – 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers

Flat wire thickness (a): 0.8mm ~8.0mm
Flat wire width (b): 2.0 ~ 25mm
Width (b) /thickness (a) ratio: 1.4 ＜ b/a＜8.0
Enameled flat aluminum wire available size ranges from 1.6-200 mm².

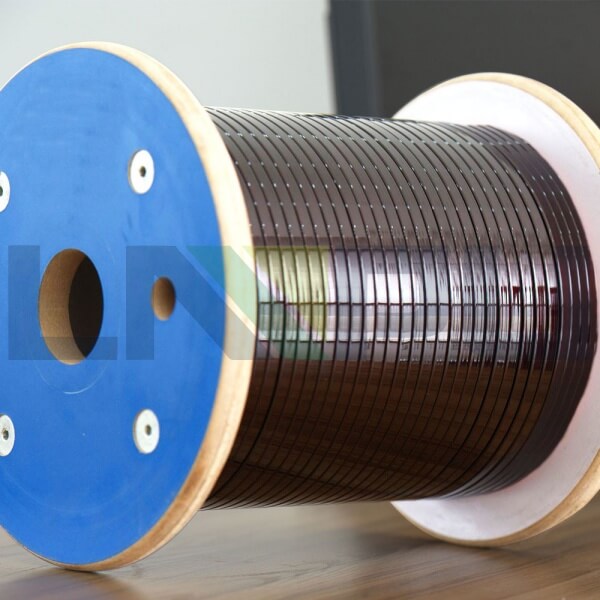

180H Rectangular Flat Aluminum Winding Wire For Electric Tools is a wire drawn from a round aluminum rod through a mold of specifications or extruded, and the drawn bare wire is annealed and softened, and then painted and baked for many times. Mainly used in the windings of electrical equipment such as transformers and reactors.

Class 155 Enameled Aluminum Magnet Wire has high heat resistance, high softening breakdown, solvent resistance, high cut through performance, excellent film flexibility, excellent wear resistance and so on.
American UL certified products. Certificate No.: E345303

Enameled Aluminum Wire is also called magnet aluminum wire, which is used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers and is composed of aluminum conductor and insulation materials. The aluminum winding wire can be divided into flat type and round type.

Enamelled Square Magnet Wire – 0.4*0.4mm–9.1*9.1mm
Enamelled Flat Aluminum Wire – A> 0.8–10mm, B> 2-25mm
Enamelled Round Aluminum Wire – Diameter: 0.15–10.0mm,
Enamelled Flat Copper Wire – a: 0.3-8.0 mm, b：2-25.00 mm
Enamelled Round Copper Wire – Diameter: 0.016 -7.0mm

China Supplier Wholesale Magnet Cable Coated Enameled Aluminum Wire Price

Thermal Class: 130-220C
Delivery time: 7-30 Days
Brand Name: LP Magnet Wire
Model Number: Aluminum Flat Wire
Bobbin: 30kg/50kgWooden Spool
Certification: SGS,UL,ISO9001,ISO4001

Super Enameled Aluminium Wire Manufacturers Aluminium Wire Swg Chart, mainly aluminum rectangular wires with various thermal properties. These wires are available in different thermal classes, sizes and models.
Winding wires are state of the art. We achieve this through consistent, high-quality products that can be customized to meet specific needs. We use specially designed insulation coatings to ensure safety and reliability for all applications.

Product Name£º130/155/180 Degree Aluminum Magnetic Wire
Type: round and rectangular type
Round Dimension:0.2–10.0mm,
Rectangular: A> 0.8–8mm, B> 2-22.5mm
Conductor Material£ºAluminum
Application£ºused for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate£ºUL,RoHS
Insulation Materilas£ºPVF, EIW, AI-EIW, AIW, etc.
Thermal Class:130, 155, 180

Composition of Polyester Enameled Aluminum Winding Wire
Polyester Aluminum Magnet Wire consists of a conductor and an insulating layer. After the bare wire is softened by annealing, it is painted and baked many times. It is not easy to produce products that not only meet the requirements of the standards, but also meet the requirements of customers. It is affected by many factors such as the quality of raw materials, process parameters, production equipment, and the environment. Therefore, the quality characteristics of various enameled wires are different, but they all have the same four major properties as mechanical properties, chemical properties, electrical properties, and thermal properties.

So far, most of transformer, motors and generator manufacturer used the copper magnet wire with its high performance. Nowadays, the enameled aluminum wire uses widely in low-voltage dry type transformer, and motores, which can gradually the copper wire.

Class 200 Enameled Aluminum Magnet Wire
Performance Parameter:(The following parameters apply to 2.0mm Class 200 enameled round aluminum wire, the measured data for reference only.)
Breakdown Voltage: 10.2KV, 11.7KV, 11.0KV, 10.6KV
Elongation: 25%
Winding Test: 3D no cracking
Tensile Test: Tensing 15% insulation film no cracking
Resistance to heat shock: Tensing 15%, 220C insulation film no cracking
Resistance to solvent: Standard solvent ¡°2H¡± Pencil is ok
Nominal resistance: 0.00899¦¸/m

Single-layer Enameled Aluminum Flat Wire Insulated Aluminium Winding Wires are suitable for all “H”, “F” and “B” category applications, such as dry-type transformers, stator winding fractional HP motors, DC magnetic field and armature windings. Wires coated with polyester have good chemical resistance and are compatible with all common impregnating varnishes, including high-temperature modified phenolic polyester and other varnishes that do not contain reactive solvents.

With the transformer and motors developping, the Enameled Aluminum Wire On The Market is used more and more, expecially the unstable price of copper.
Enameled Aluminum Wire Type: rectangular and round type
Certificate: UL

Raw Materials: aluminum conductor and UEW(QA), PEW(QZ), EIW(QZXY), EI/AIW(QZY) Wire Enamel;
Thermal class: 180(Class H), 200(Class C), 220(Class C+), 240(Class HC),
Standard: IEC, NEMA, JIS, GB.
Spool materials: plastic, wooden.
Dimension: 0.16-9.2mm; 1awg – 34 awg
Application: used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers

Transformers wound with aluminum or copper coils have similar losses and performance. Losses in the transformer¡¯s coil are a function of the current carrying capacity of the wire or foil used to wind them and the actual current. Therefore, a larger wire is used when winding aluminum coils to make up for the lower current carrying capacity and efficiency of aluminum.

enameled aluminum wire is composed of aluminum conductor and insulation materials, which is insulated with a thin film or coating and creates a magnetic field when the wire is would in a coil and power is applied. Aluminum Conductor is main type of enameled wire.

Size: 0.16-9.2mm
Delivery time: 7-30 Days
Conductor Type: Solid
Thermal Class: 130C~220C
Brand Name: LP Magnet Wire

Grade: 1000 Series
Width: 20-1900mm
Alloy Or Not: is Alloy
Thickness (mm): 0.2-3.0
Brand Name: LP Industry
Delivery Time: 46-60 days
Processing Service: Bending, Welding, Cutting

Product Name:enameled aluminum round wire
Type: round wire
Round Dimension:Awg 33
Conductor Material:Aluminum
Application:used for transformers, inductors, motors, generators, dry type transformer, Cast Resin Transformers
Certificate:UL,RoHS
Insulation Materilas:UEW, QZ, QZY, EIW, etc.
Thermal Class:105¡æ, 120¡æ, 140¡æ, 155¡æ, 180¡æ, 200¡æ, 220¡æ, 240¡æ

Aluminum is not only cheaper than copper, but also as an excellent conductor, it has better flexibility than copper, its density is only 1/3 of copper, and the same weight of aluminum conducts electricity twice as much as copper; therefore, aluminum Wire requires a larger wire gauge than copper wire to conduct the same current.
Compared with copper, another advantage of enameled round aluminum wire is that the NEMA standard recognizes aluminum wire as a higher thermal enameled wire. For example, replacing copper wires with aluminum wires, using high-temperature polyester TeresterR@ C966, and composite polyamide-imide topcoat, the thermal level can be increased from 200 to .220. The reason is that during the aging experiment of the enameled copper wire, the catalysis of copper ions promotes the aging of the paint film.

PT-25 PT-30 2.40mm Aluminum Enameled Transformer Winding Wire means that the one spool of winding wire is about 25kg or 30kg. Conical magnet wire delivery spool is made of plastic materials, used for below 5kg. The tapered design not only maximizes the winding volume of the spool, but also ensures the smooth winding process. But the 25kg and 30kg aluminum enameled transformer winding wire normally uses the wooden rool. All product data may have slight deviations, and the tolerance values ??are within the range of industry standards. The packaging and transportation process of the tapered magnet wire conveyor spool has the characteristics of high strength, strong impact resistance, and good balance.
