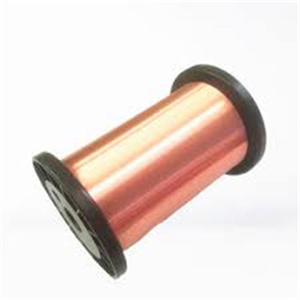

1.060mm copper polyester resin enameled wire winding



This wire's dimensions -1.06MM make it suitable for various electrical applications, where its optimal balance of thickness and flexibility allows for efficient winding and installation. The polyester resin enamel coating serves as insulation, protecting the wire from electrical faults and ensuring reliable performance.

Applications:

Transformers: Transformers rely on copper wire windings to transfer electrical energy between different voltage levels.

The 1.060mm copper polyester resin enameled wire winding enables precise winding configurations, ensuring reliable and efficient energy conversion.



Inductors and Coils: Inductors and coils are crucial components in electronic circuits, used for energy storage, filtering, and signal processing.

The 1.060mm copper polyester resin enameled wire winding provides the desired electrical properties and mechanical strength required for these applications.



Electrical Motors: The 1.060mm copper polyester resin enameled wire winding finds extensive use in constructing electrical motors. Its excellent electrical conductivity ensures efficient power transmission, while the enamel coating offers superior insulation, preventing short circuits and maintaining the integrity of the winding.



Benefits:

Versatility:  Its flexibility allows for easy winding and installation, accommodating diverse design requirements.



Excellent Electrical Conductivity:The 1.060mm copper polyester resin enameled wire winding maintains this conductivity, enabling minimal power loss and optimum performance.



Enhanced Insulation: The polyester resin enamel coating acts as a robust insulating layer, protecting the wire from external influences, such as moisture, heat, and mechanical stress.



Conclusion:

The 1.060mm copper polyester resin enameled wire winding offers a remarkable combination of electrical conductivity, insulation, and versatility. Its applications in electrical motors, transformers, and electronic circuits are testament to its reliability and efficiency.
